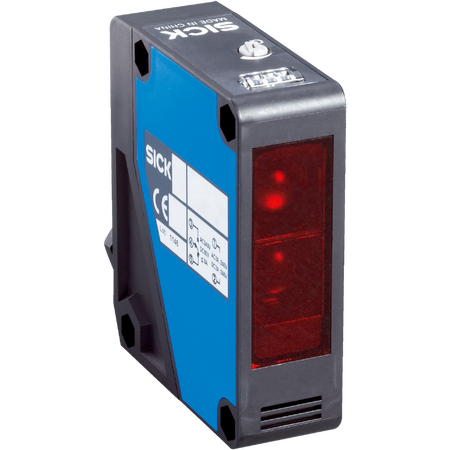

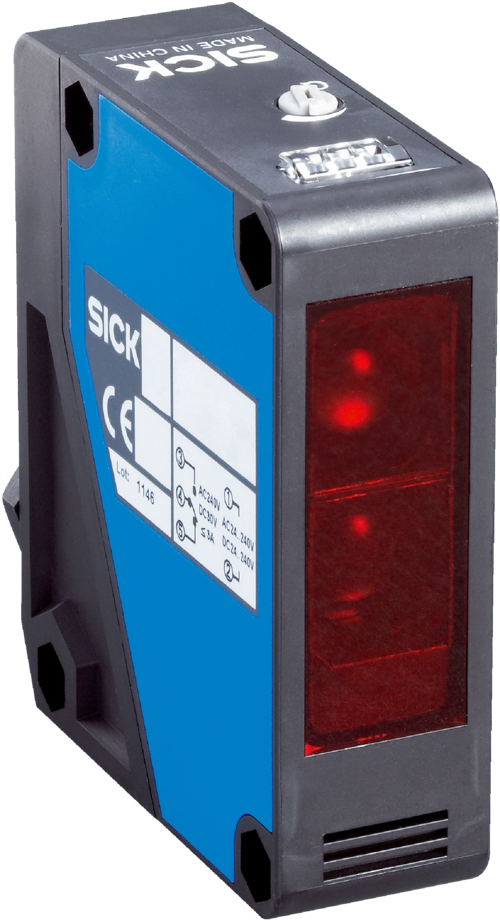

Photoelectric Proximity Sensor WTE280-2H4331 10mm to 2000mm Sensing Range IP66 & IP67 Rated SICK

BRAND: SICK
SKU: 6044730
$363.00 List price: $456.20
+ −
30 Days Return Electricians Unlock Trade Access
The WTE280-2H4331 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 10 mm to 2000 mm and a robust IP66 IP67
Technical Specifications
  • Functional principle: Photoelectric proximity sensor (energetic)
  • Sensing range max.: 10 mm to 2000 mm
  • Light source: LED visible red light
  • Light spot size at 1500 mm: Ø 45 mm
  • Supply voltage: 24 V DC to 240 V DC, 24 V AC to 240 V AC
  • Power consumption: ≤ 5 VA
  • Switching output: Relay, electrically isolated, change-over contacts
  • Switching current: 3 A at 240 V AC, 3 A at 30 V DC
  • Response time: ≤ 15 ms
  • Switching frequency: 33 Hz
  • Connection type: Cable gland
  • Circuit protection: A and C types
  • Protection class: II
  • Overvoltage category: 2
  • Housing material: Plastic ABS
  • Optics material: Plastic PMMA
  • Enclosure rating: IP66, IP67
  • Usage category: AC-15, DC-13 according to EN 60947-1
  • Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
  • Ambient operating temperature: -25 °C to +55 °C
  • Storage temperature: -40 °C to +70 °C
  • MTTFD: 1,548 years
  • Dimensions (H x L x W): 75mm x 63mm x 24mm
  • Weight: 0.15 kg
Key Features
  • Photoelectric proximity sensor with energetic functional principle
  • Rectangular housing design with visible red LED light source
  • Adjustable sensing range via potentiometer
  • Sensing range from 10 mm up to 1500 mm
  • Relay switching output with change-over contacts
  • High switching frequency of 33 Hz and response time ≤ 15 ms
  • Robust plastic ABS housing with IP66 and IP67 enclosure rating
  • Wide supply voltage range from 24 V DC/AC up to 240 V DC/AC
  • Includes mounting bracket BEF-W280
  • Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
  • Industrial automation for object detection
  • Safety and monitoring in manufacturing processes
  • Material handling and packaging systems
Standards & Compliance
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Low power consumption of ≤ 5 VA reduces energy usage
  • Durable housing materials extend product lifespan, reducing waste
  • Complies with China-RoHS for restricted hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK WTE280-2H4331 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
