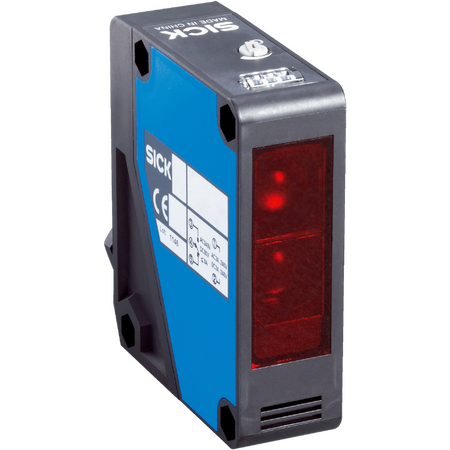

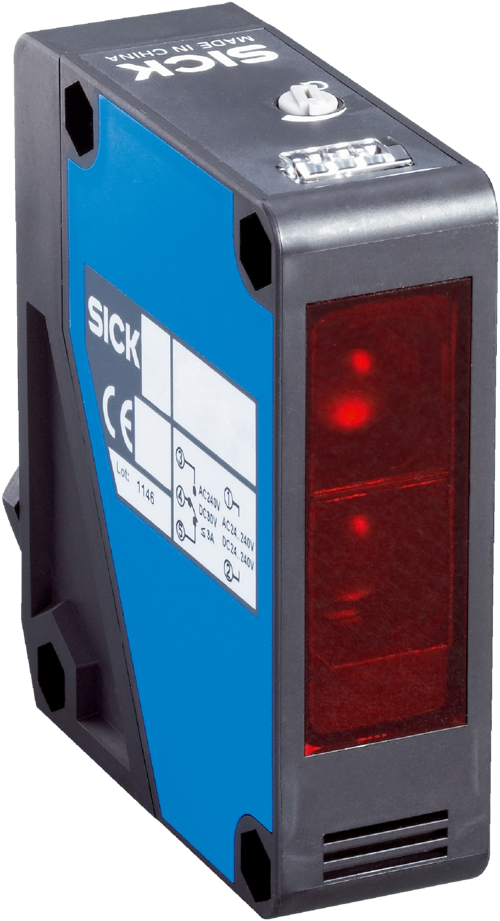

Photoelectric Proximity Sensor WTT280L-2P2531 IP67 Rated Fast Response Time SICK
The WTT280L-2P2531 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: PNP, 1 output
- Switching mode: Light/dark selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Connection type: Male connector M12, 5-pin
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Laser class: 1 (EN 60825-1:2014, IEC 60825-1:2014)
- Dimensions (H x L x W): 76mm x 56mm x 24mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 4000 mm depending on model
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Potentiometer adjustment for sensitivity
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Robust plastic ABS housing with PMMA optics
- Includes mounting bracket BEF-W280
- Electrical protection circuits A, B, C, D included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and laser safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems requiring precise object detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption of 70 mA
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTT280L-2P2531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
