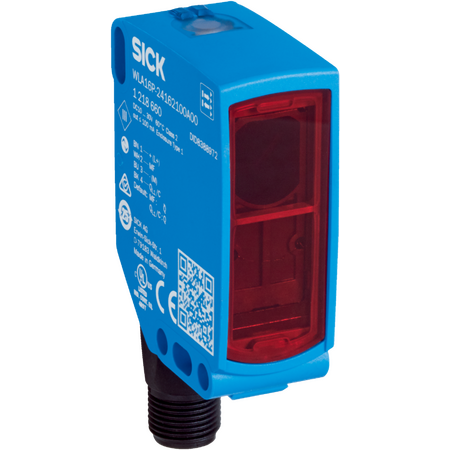

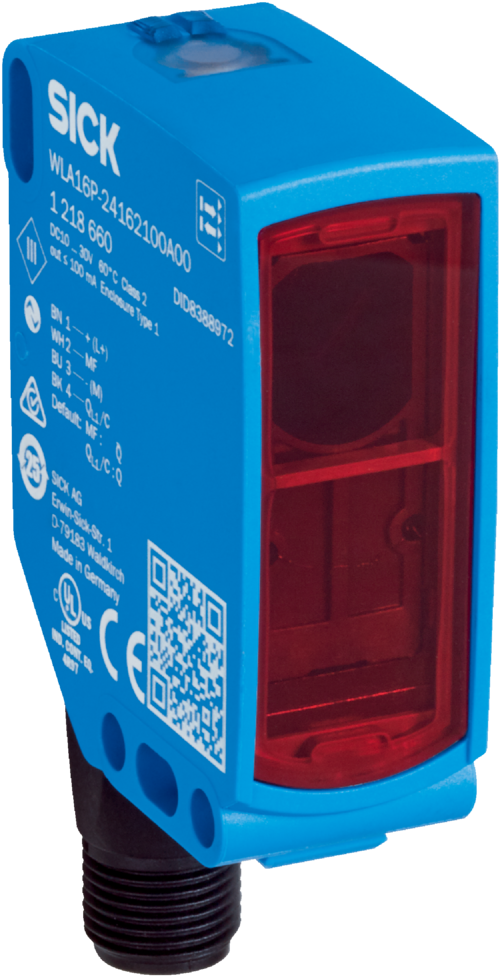

Photoelectric Retro-Reflective Sensor 10m Sensing Range PinPoint LED M12 Connector PNP Dark-ON Light-ON SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 10 meters and a PinPoint LED light source with a
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 10 m, recommended 0 m to 7 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary PNP outputs, light/dark switching
- Switching frequency: up to 1000 Hz
- Response time: ≤ 500 µs
- Protection class: III
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 10 m with recommended range 0-7 m
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- IO-Link communication for sensor parameter configuration
- LED indicators for alignment, power, IO-Link mode, and object detection status
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and secure mounting with maximum tightening torque of 1.3 Nm for fixing screws.
Applications
- Industrial automation for object detection
- Packaging and material handling systems
- Detecting objects wrapped in film
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Robust design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLA16P-24862130A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
