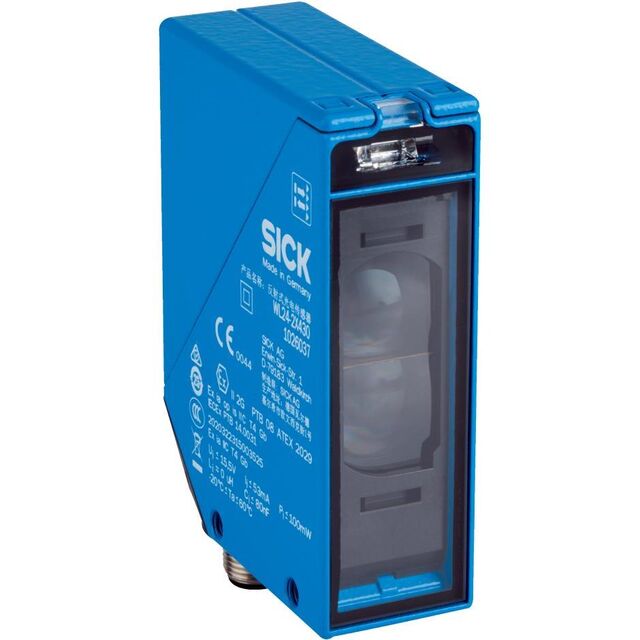

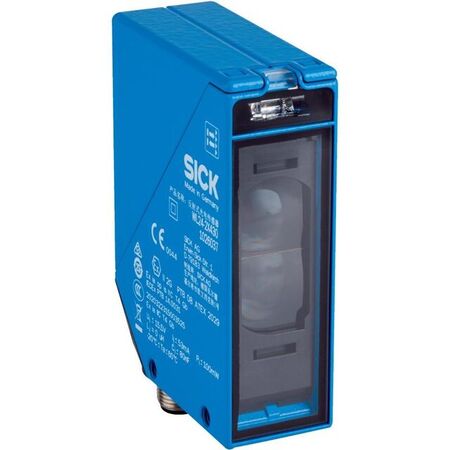

Photoelectric Retro-Reflective Sensor 15m Sensing Range IP67 Rated Variant-2 SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and robust IP67-rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, Industrial Object Sensor, ATEX Certified Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 15 m (max 22 m)
- Light source: LED visible red light
- Light spot size at 15 m: Ø 250 mm
- Supply voltage: 5 V DC to 15.5 V DC
- Switching output: NAMUR
- Response time: ≤ 10 ms
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: II
- Enclosure rating: IP67
- Housing material: Metal, zinc diecast
- Optics material: Glass
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +70 °C
- ATEX marking: II 2G Ex ia op is IIC T4 Gb
- Certifications: ATEX, IECEx, CCC, China RoHS, Photobiological safety (DIN EN 62471)
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.33 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Sensing range up to 15 meters, max 22 meters
- Robust metal zinc diecast housing with glass optics
- IP67 rated enclosure for dust and water protection
- NAMUR switching output with light switching mode
- Fast response time ≤ 10 ms and switching frequency of 50 Hz
- Certified for explosive areas with ATEX and IECEx approvals
- Polarisation filter included for enhanced detection reliability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical safety standards to ensure compliance and safe operation.
Applications
- Industrial automation for object detection
- Safety monitoring in explosive areas
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption with input power max 100 mW
- Durable metal housing extends product life reducing waste
- Certified compliance with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL24-2X430 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications in explosive environments.
