Photoelectric Retro-Reflective Sensor | Dual Lens System | 1.5m Sensing Range | IP67 Rated | by SICK

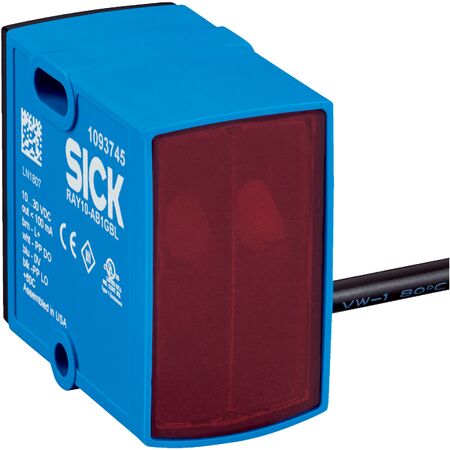

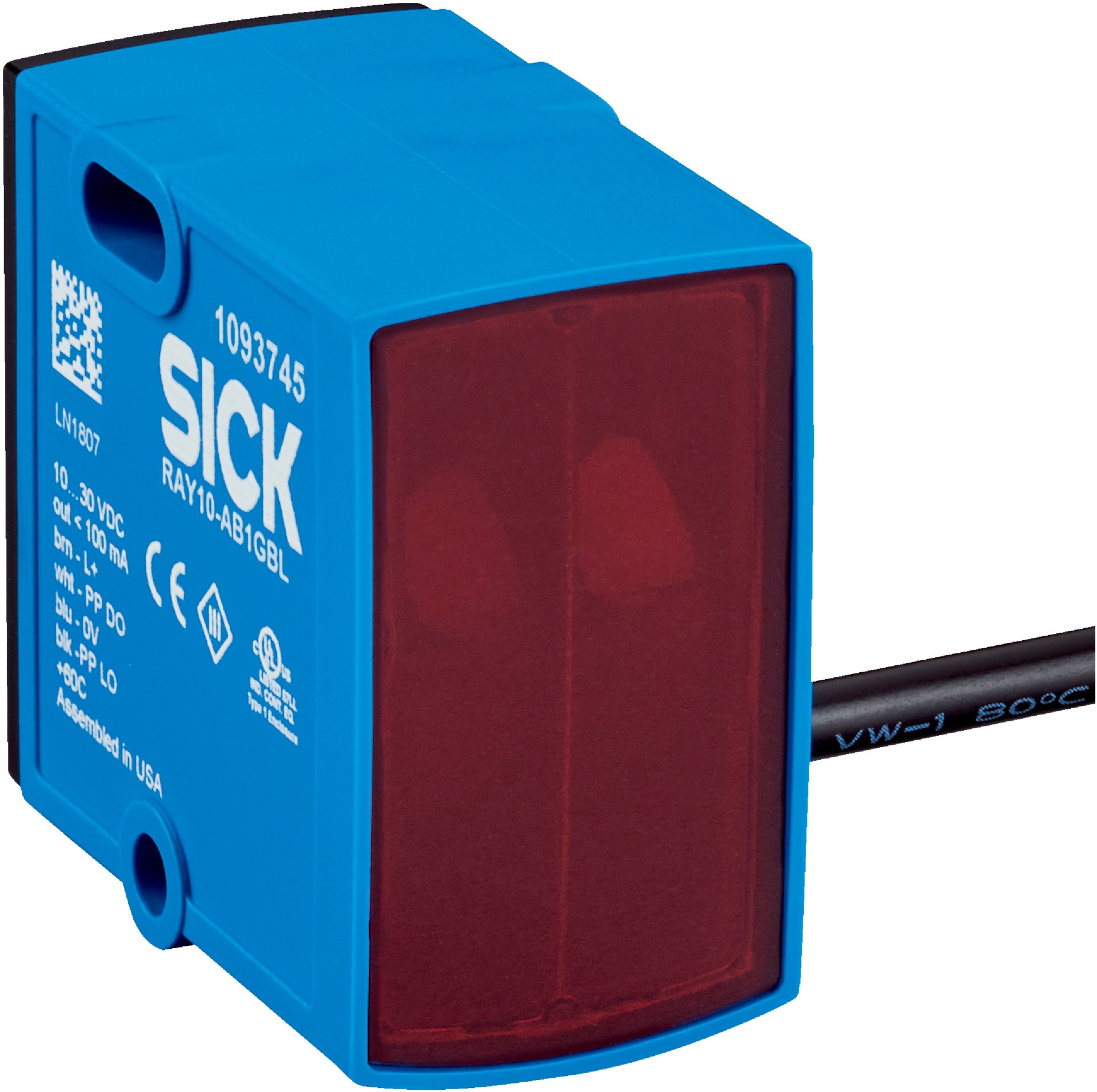

The Photoelectric Retro-Reflective Sensor RAY10-AB5CBLA00 features a dual lens system for precise object detection, with a sensing range of up to 1.5 meters. Ideal for industrial automation, it effectively detects various object types, including transparent and shiny surfaces. With an IP67 rating and a wide operating temperature range from -40 °C to +60 °C, this sensor is built for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range: 0 to 1.5 m
- Light source: PinPoint LED, 635 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 4-pin male connector, 300 mm length
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m with visible red light (635 nm)
- Potentiometer and IO-Link adjustment
- Push-pull PNP/NPN switching output with light/dark switching modes
- High switching frequency up to 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for robust protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Cable with M8 4-pin connector included
- Smart Task functions including logic and timer functions
- Communication via IO-Link V1.1 with 2.3 ms cycle time
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Detecting transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK RAY10-AB5CBLA00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
