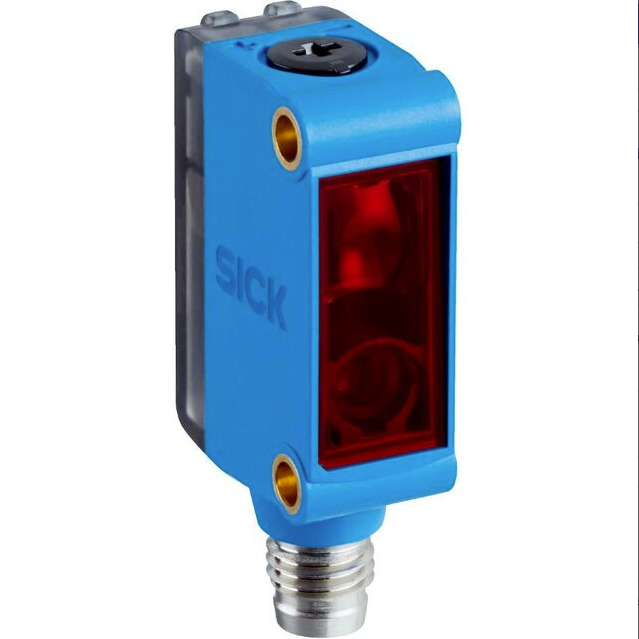

Photoelectric Retro-Reflective Sensor GL6-P3211 IP67 Rated Fast Response Time SICK

BRAND: SICK
SKU: 1068921
$245.50 List price: $308.50
+ −
30 Days Return Electricians Unlock Trade Access
The Photoelectric Retro-Reflective Sensor GL6-P3211 is designed for industrial automation, featuring a dual lens system for precise object detection and a sensing

Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GL6 sensor, Industrial object sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Current consumption: 30 mA
  • Protection class: III
  • Output type: PNP digital output
  • Switching mode: Light/dark switching selectable
  • Output current max: ≤ 100 mA
  • Response time: < 625 µs
  • Switching frequency: 1000 Hz
  • Enclosure rating: IP67
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -40 °C to +70 °C
  • Housing material: Plastic ABS/PC
  • Front screen material: Plastic PMMA
  • Connection: M8, 3-pin connector
  • Weight: 20 g
  • Dimensions (H x L x W): 31.5mm x 21mm x 12mm
  • Weight: 0.1 kg
Key Features
  • Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
  • Sensing range from 0.03 m to 6 m
  • Polarisation filter included
  • Visible red light PinPoint LED with 650 nm wavelength
  • Adjustable potentiometer with 270° rotation
  • IP67 rated enclosure for dust and water protection
  • Light/dark switching mode selectable via light/dark selector
  • Fast response time under 625 µs and switching frequency up to 1000 Hz
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
  • Industrial automation for object detection
  • Safety and monitoring in manufacturing processes
  • Material handling and conveyor systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED light source reduces power consumption
  • Durable IP67 housing extends product life and reduces waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK GL6-P3211 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
