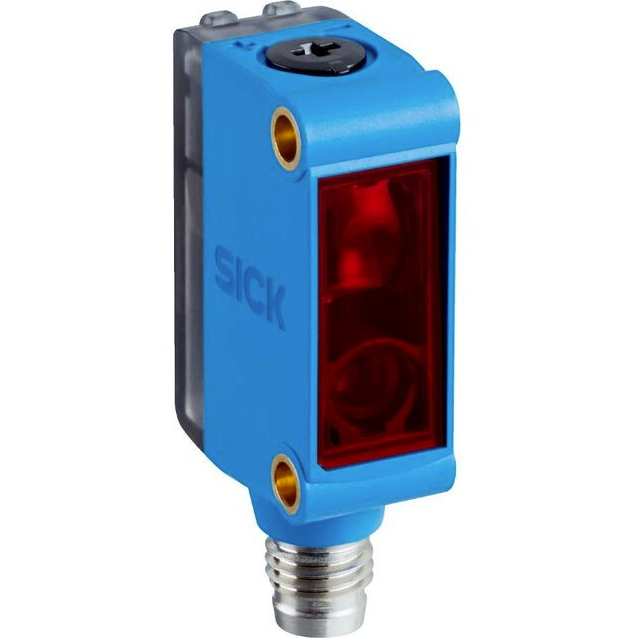

Photoelectric Retro-Reflective Sensor GL6-P4211 IP67 Rated 0.03m to 6m Sensing Range SICK
The Photoelectric Retro-Reflective Sensor GL6-P4211 is designed for industrial automation, featuring a sensing range from 0.03m to 6m and a high switching frequency
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GL6 sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP digital output
- Switching mode: Light/dark switching selectable
- Response time: less than 625 µs
- Switching frequency: 1,000 Hz
- Signal voltage PNP HIGH/LOW: VS- (≤ 3 V) / approx. 0 V
- Output current max: ≤ 100 mA
- Circuit protection: A, B, D
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm distance
- Connection: Male connector M8, 4-pin
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m
- Polarisation filter included
- Visible red light PinPoint LED with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- Light/dark switching mode selectable via light/dark selector
- High switching frequency of 1,000 Hz
- Compact plastic housing with IP67 rating for dust and water protection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL6-P4211 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
