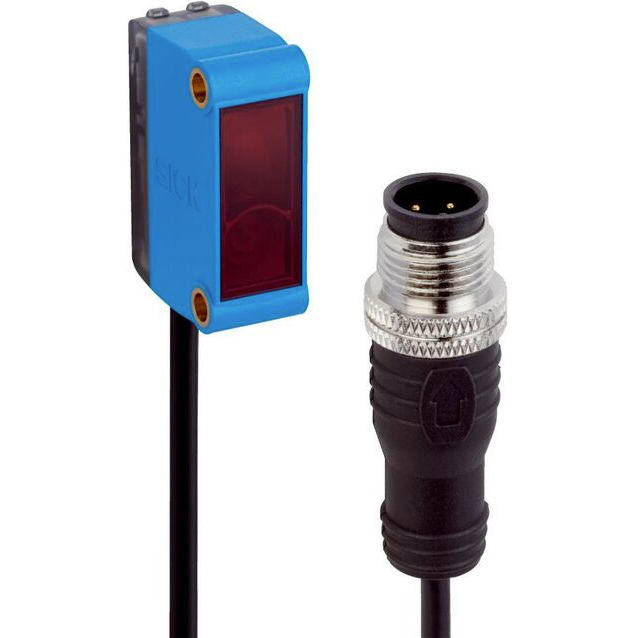

Photoelectric Retro-Reflective Sensor GL6-P7511 Dual Lens System IP67 Rated SICK
The Photoelectric Retro-Reflective Sensor GL6-P7511 is designed for industrial automation, featuring a dual lens system and a sensing range of 0.03m to 6m.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GL6 sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max.: 0.03 m to 6 m
- Sensing range typical: 0.07 m to 5 m
- Polarisation filter: Yes
- Light source: PinPoint LED, visible red light
- Wavelength: 650 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Housing material: Plastic ABS/PC
- Connection: Cable with M12 male connector, 4-pin
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 6 m
- Polarisation filter for reliable detection
- Visible red light with 650 nm wavelength
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Compact housing made of plastic ABS/PC
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL6-P7511 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
