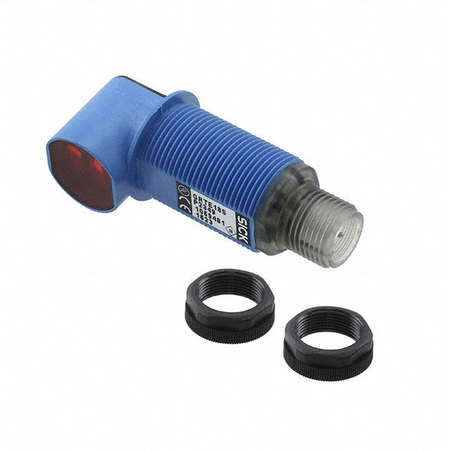

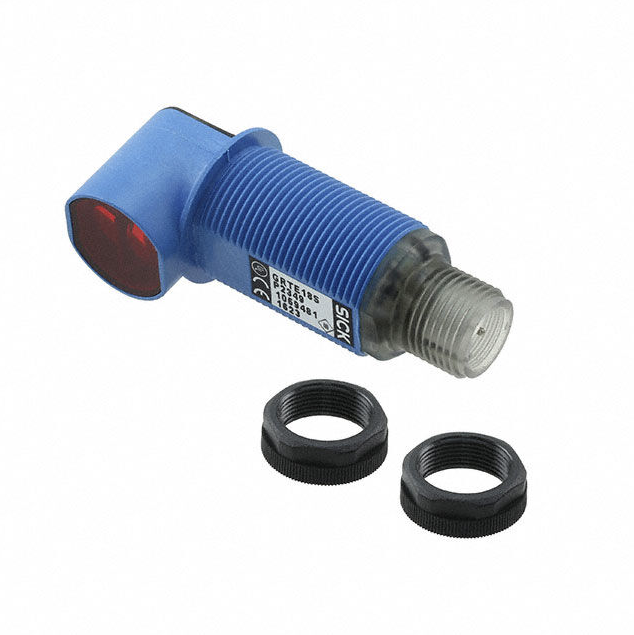

Photoelectric Retro-Reflective Sensor GRL18S-P2338 IP67 Rated 0.06m to 6m Sensing Range SICK
The Photoelectric Retro-Reflective Sensor GRL18S-P2338 is designed for industrial automation, featuring a sensing range of 0.06m to 6m and a high switching
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, M18 photoelectric sensor, SICK proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Connection type: M12, 3-pin connector
- Circuit protection: A, B, D types
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 18mm x 38.1mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range from 0.06 m to 6 m
- Radial optical axis with cylindrical housing design
- M18 x 1 thread diameter housing
- LED indicators for power and object detection status
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Polarisation filter included
- Fastening nuts supplied
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GRL18S-P2338 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
