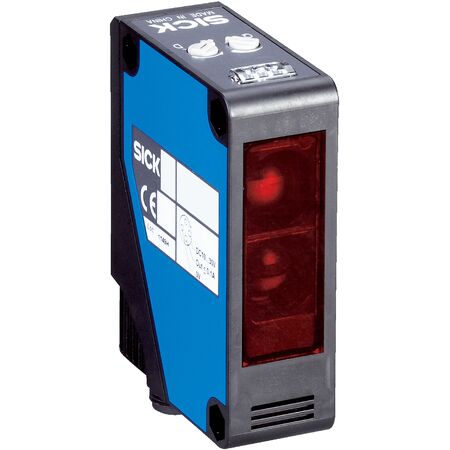

Photoelectric Retro-Reflective Sensor | High Switching Frequency | IP66 & IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL280-2N2431 is designed for industrial automation, featuring a high switching frequency of 1,000 Hz and robust IP66/IP67 protection. Ideal for object detection in material handling and conveyor systems, this sensor ensures reliable performance in challenging environments, with a wide operating temperature range from -25°C to +55°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN
- Switching mode: Light/dark selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- EMC compliance: EN 60947-5-2
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED source
- Adjustable potentiometer for sensitivity
- High switching frequency of 1,000 Hz
- Robust plastic ABS housing with IP66 and IP67 protection ratings
- Polarisation filter included
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL280-2N2431 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
