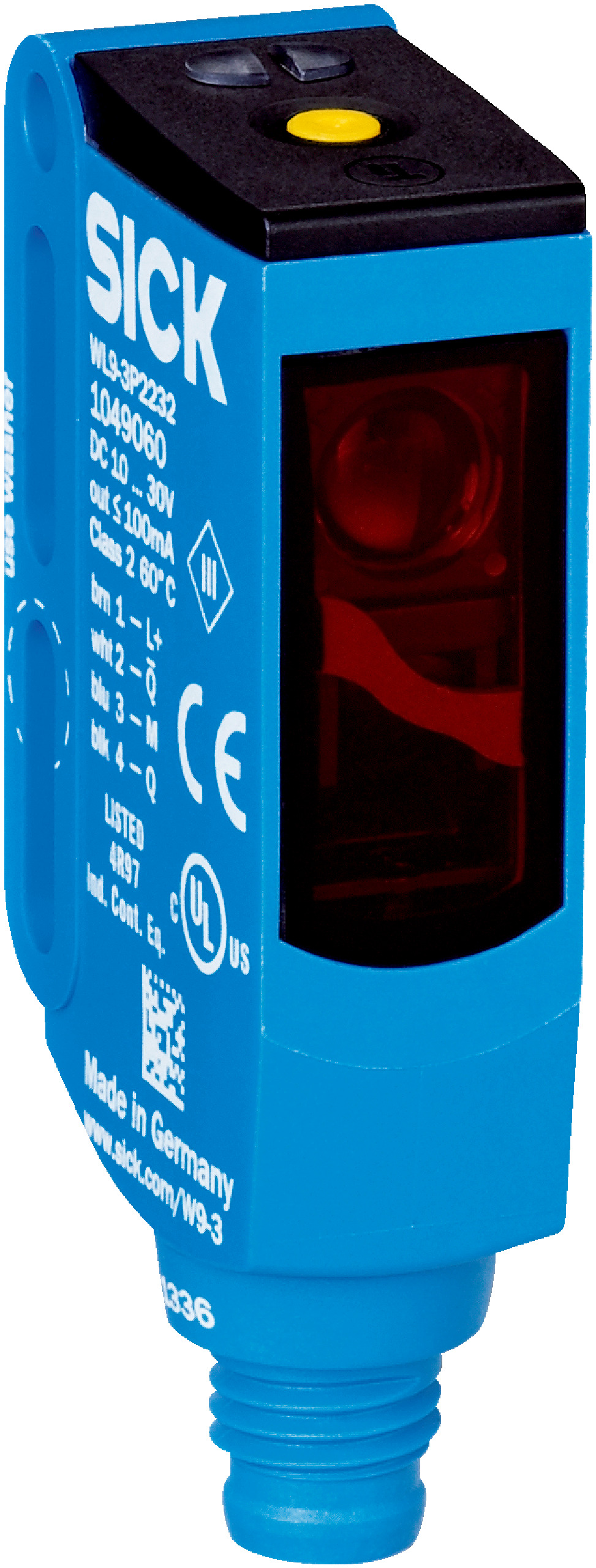

Photoelectric Retro-Reflective Sensor WL9-3P2232S10 | IP66, IP67, IP69K Rated | 5,000 Hz Switching Frequency | by SICK
The WL9-3P2232S10 Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 5 meters and a high switching frequency of 5,000 Hz, it ensures reliable performance in safety and monitoring applications. Its robust IP66, IP67, and IP69K rated housing makes it suitable for harsh environments, while the visible red light and single teach-in button simplify setup and adjustment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range max: 0 m to 5 m
- Sensing range: 0 m to 3 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 1.5 m: Ø 45 mm
- Wavelength: 650 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 100 µs
- Switching frequency: 5,000 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Single teach-in button for easy adjustment
- Vertical slotted diaphragm for precise detection
- High switching frequency of 5,000 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40°C to +60°C
- Polarizing filter and special device features included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9-3P2232S10 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
