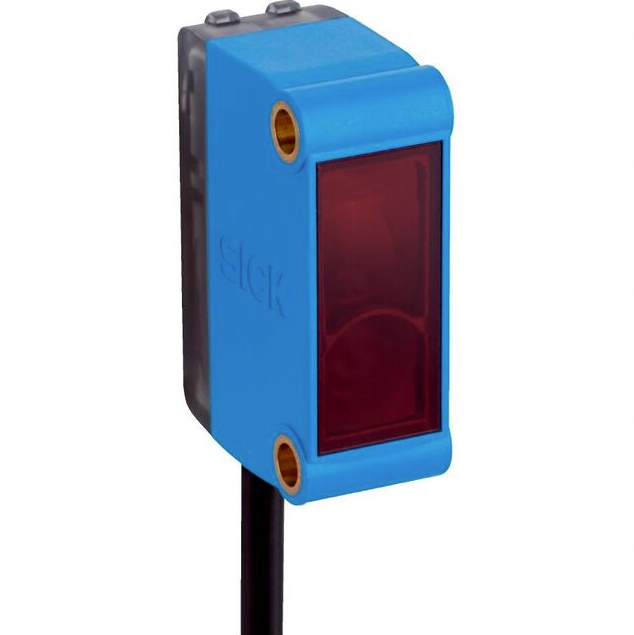

Photoelectric Retro-Reflective Sensor IP67 Rated Dual Lens System (0.07m to 6m Sensing Range) SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection at distances from 0.07m
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GL6 sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Protection class: III
- Digital output: PNP type with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable material: Plastic PVC
- Connection: Cable with Tyco connector, conductor size 0.14 mm², length 550 mm
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.07 m to 6 m, maximum up to 7.2 m
- Polarisation filter included to reduce interference
- Visible red light PinPoint LED with 650 nm wavelength
- Light spot size Ø 8 mm at 350 mm distance
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
- Cable connection with Tyco connector and 550 mm cable length
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The SICK GL6-P0111S09 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
