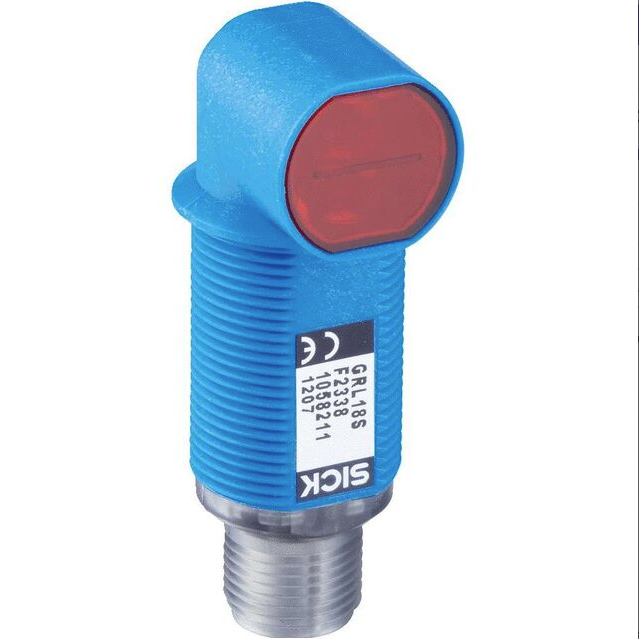

Photoelectric Retro-Reflective Sensor IP67 Rated Fast Response Time Variant-1 (Dual Lens System) SICK

BRAND: SICK
SKU: 1069071
$197.90 List price: $248.70
+ −
30 Days Return Electricians Unlock Trade Access
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection and a sensing range of

Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GRL18 sensor, Industrial object sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Current consumption: 30 mA
  • Switching output: PNP, light/dark switching
  • Output current max: ≤ 100 mA
  • Response time: < 500 µs
  • Switching frequency: 1,000 Hz
  • Connection type: Male M12, 4-pin connector
  • Housing material: Plastic, ABS
  • Optics material: Plastic, PMMA
  • Enclosure rating: IP67
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -40 °C to +70 °C
  • EMC compliance: EN 60947-5-2
  • Dimensions (H x L x W): 18mm x 38mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
  • Visible red light with PinPoint LED light source
  • Sensing range from 0.06 m to 6 m
  • Radial optical axis with cylindrical housing design
  • LED indicators for power and object detection status
  • High switching frequency of 1,000 Hz and fast response time under 500 µs
  • IP67 rated enclosure for dust and water protection
  • Polarisation filter included to reduce interference
  • Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
  • Industrial automation for object detection
  • Safety and monitoring in manufacturing processes
  • Material handling and packaging systems
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Energy-efficient LED light source reduces power consumption
  • Durable IP67 housing extends product life and reduces waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK GRL18S-P2438 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
