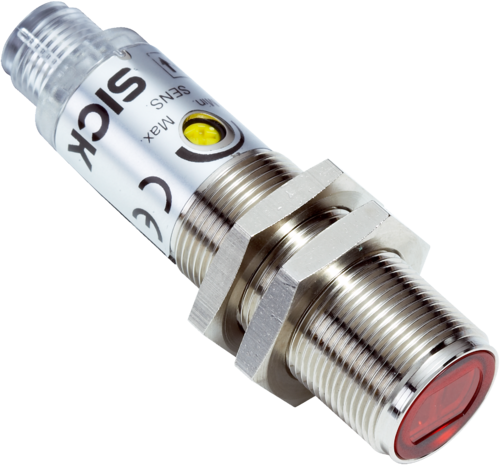

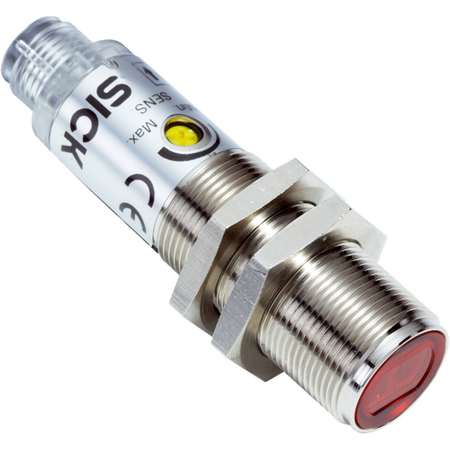

Photoelectric Retro-Reflective Sensor VL180-2N42462 0.05m to 7m Sensing Range IP67 Rated SICK
The VL180-2N42462 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of 0.05 m to 7 m and a fast response time
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.05 m to 7 m
- Light source: Infrared LED at 920 nm wavelength
- Adjustment: Potentiometer with 270° sensitivity control
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN transistor
- Switching mode: Light/dark selectable via control cable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Nickel-plated brass and polycarbonate
- Optics material: PMMA plastic
- Dimensions (H x L x W): 18mm x 70.2mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.05 m to 7 m
- Infrared LED light source with 920 nm wavelength
- Potentiometer adjustment with 270° sensitivity control
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Selectable light/dark switching mode via control cable
- Includes reflector P250 and fastening nuts
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable construction reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VL180-2N42462 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
