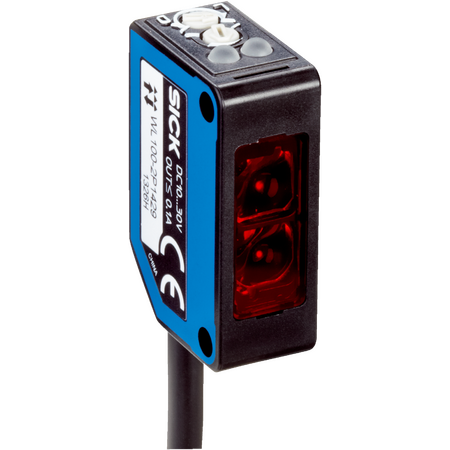

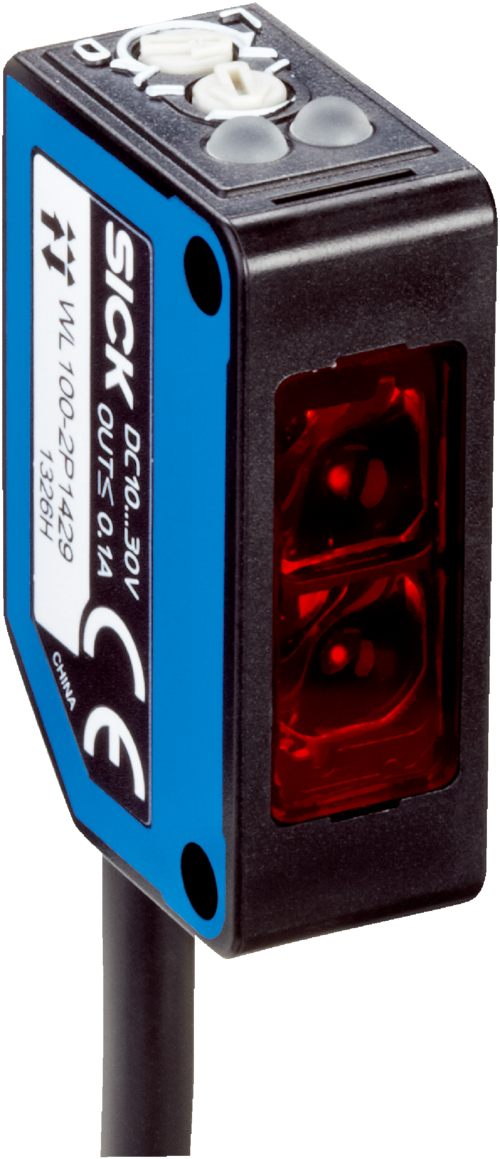

Photoelectric Retro-Reflective Sensor WL100-2P1439 IP67 Rated 1,000 Hz Switching Frequency SICK

BRAND: SICK
SKU: 6052360
$278.20 List price: $349.60
+ −
30 Days Return Electricians Unlock Trade Access
The Photoelectric Retro-Reflective Sensor WL100-2P1439 is designed for industrial automation, featuring a dual lens system for precise object detection and a high
Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Current consumption: 30 mA
  • Switching output: PNP
  • Switching mode: Light/dark selectable
  • Response time: ≤ 0.5 ms
  • Switching frequency: 1,000 Hz
  • Connection: 3-wire cable, 2 m length, PVC material
  • Protection class: III
  • Housing material: Plastic ABS/PC/POM
  • Optics material: Plastic PMMA
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -40 °C to +70 °C
  • Enclosure rating: IP67
  • Signal voltage PNP HIGH/LOW: U V - 1.8 V / approx. 0 V
  • Output current max: ≤ 100 mA
  • Dimensions (H x L x W): 31mm x 20mm x 11mm
  • Weight: 0.1 kg
Key Features
  • Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
  • Visible red light LED with wavelength of 632 nm
  • Sensing range from 0.01 m to 7.2 m
  • Potentiometer adjustment for sensitivity
  • Selectable light/dark switching mode
  • High switching frequency of 1,000 Hz
  • IP67 rated enclosure for dust and water protection
  • Polarisation filter included
  • Includes mounting bracket BEF-W100-A and Reflector P250
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
  • Industrial automation for object detection
  • Safety and control systems in manufacturing
  • Material handling and packaging lines
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption with 30 mA current draw
  • Durable IP67 housing reduces need for frequent replacements
  • Complies with China-RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK WL100-2P1439 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
