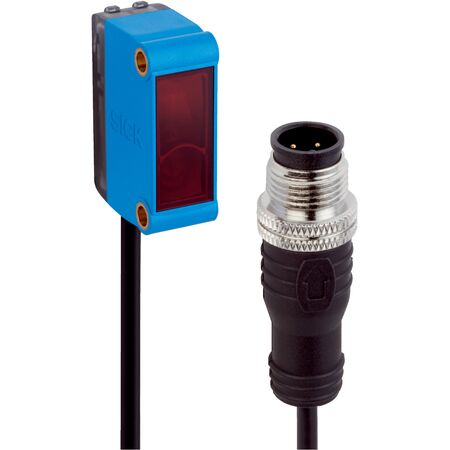

Photoelectric Sensor GL6-P7112 IP67 Rated Dual Lens System SICK
The GL6-P7112 Photoelectric Sensor is designed for industrial automation, featuring a dual lens system for precise object detection and a high switching frequency
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6-P7112 | IP67 Rated | Dual Lens System | 1,000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1053590
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK GL6 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable: Plastic PVC, 300 mm length with M12 male connector, 4-pin
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m
- Polarisation filter to reduce interference
- Visible red light PinPoint LED with 650 nm wavelength
- Light/dark switching mode selectable via light/dark selector
- High switching frequency of 1,000 Hz and fast response time under 625 µs
- IP67 rated enclosure for dust and water protection
- Supplied with stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GL6-P7112 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
