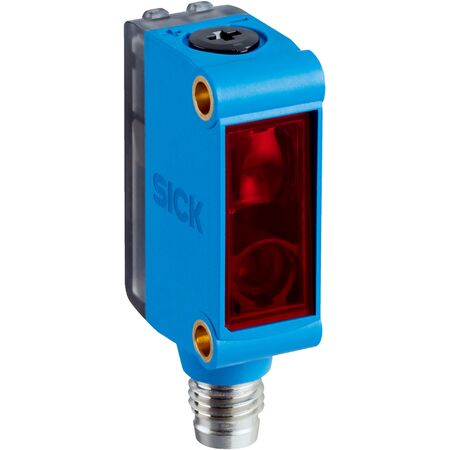

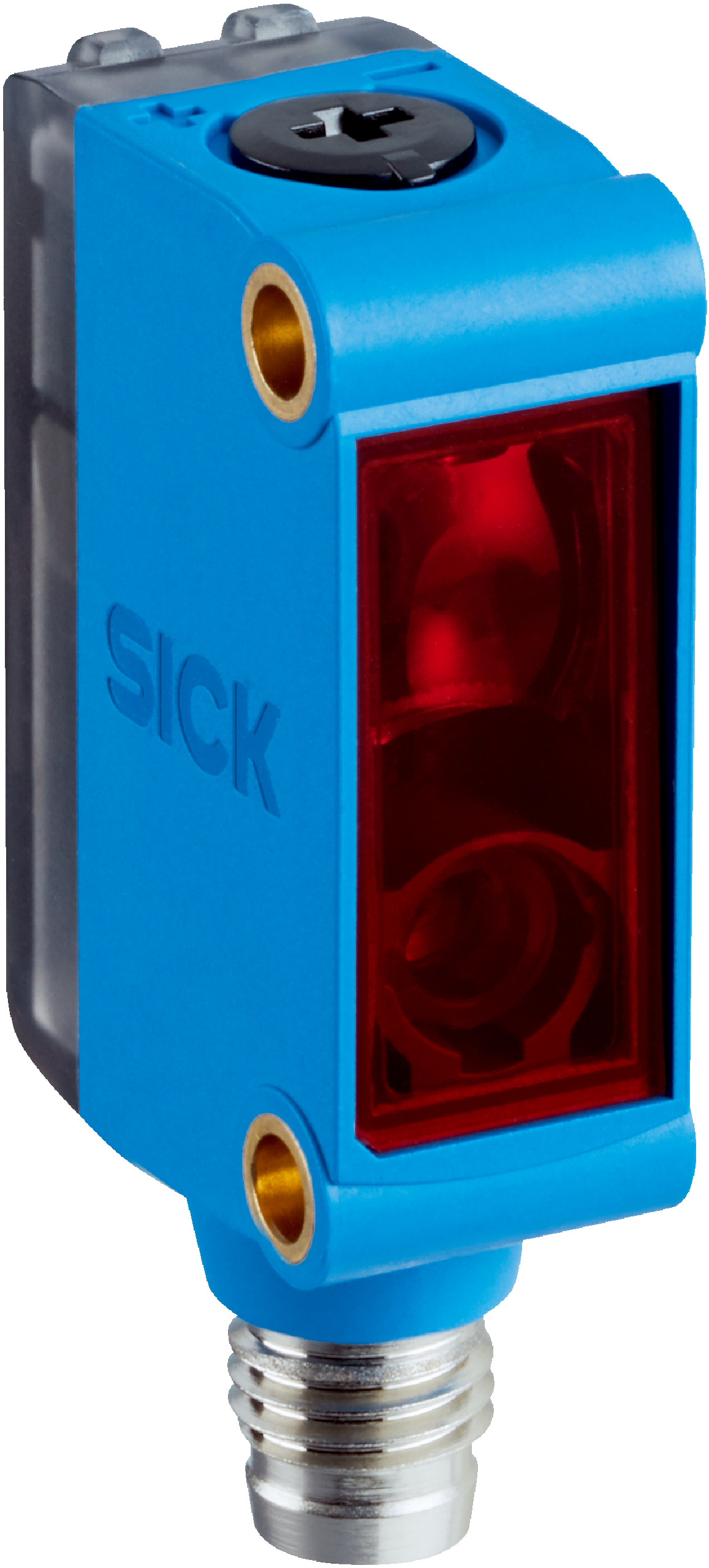

Photoelectric Sensor GL6G-P4212 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
The GL6G-P4212 Photoelectric Sensor is designed for industrial automation, featuring a retro-reflective dual lens system and a sensing range of up to 6 meters. With an IP67 rating for dust and water protection, this sensor is perfect for detecting transparent objects in manufacturing environments, ensuring reliable performance with a fast response time under 625 µs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor GL6G-P4212 | Retro-Reflective | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1060810
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Transparent object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP digital output with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1000 Hz
- Attenuation along light beam: > 20%
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Connection: Male connector M8, 4-pin
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.07 m to 5 m, max 6 m
- Polarisation filter for improved detection
- Visible red light with 650 nm wavelength
- Potentiometer adjustment with 270° rotation
- Detects transparent objects
- Stainless steel mounting bracket and reflector included
- IP67 rated enclosure for dust and water protection
- Fast response time under 625 µs and switching frequency up to 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in environments requiring reliable photoelectric sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL6G-P4212 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
