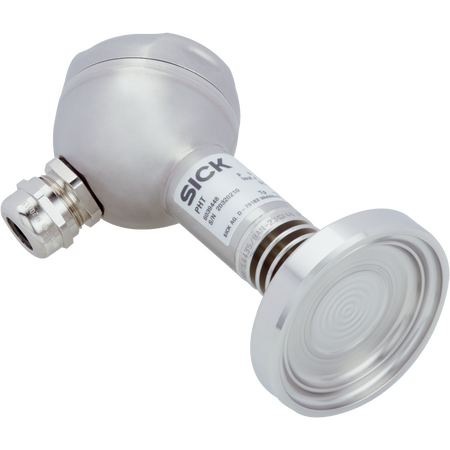

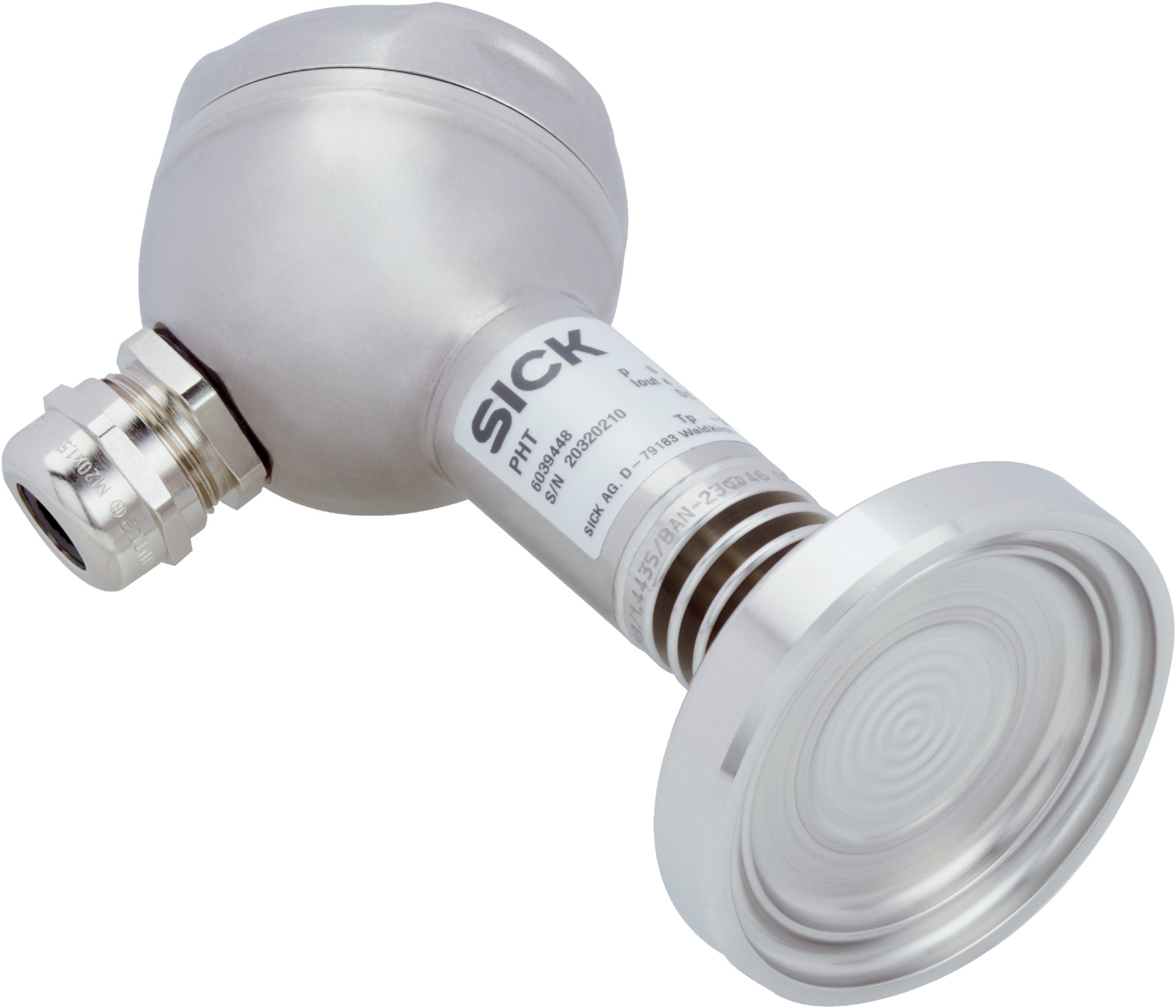

PHT-RB010S650S0AFT0Z | Pressure sensors
The SICK PHT-RB010S650S0AFT0Z is a robust pressure sensor designed for precise gauge pressure measurement in liquids and gases, featuring stainless steel construction, IP67 protection, and reliable 4-20 mA output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB010S650S0AFT0Z | Pressure sensors
Brand: SICK
SKU: 6039450
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, 4-20mA Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Measuring range: 0 bar to 10 bar
- Pressure type: Gauge pressure
- Medium: Liquid and gaseous
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Process connection: Coupling (DIN 11864-1) DN 50 form A with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage, short-circuit, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g
- Vibration load: 15 g
- MTTF: 403 years
- Dimensions (H x L x W): 120mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 10 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 50 form A with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- Overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High shock and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB010S650S0AFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
