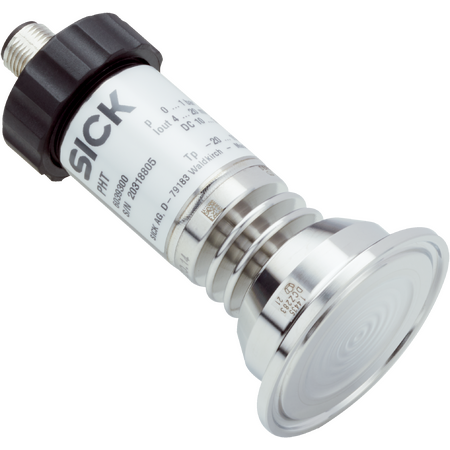

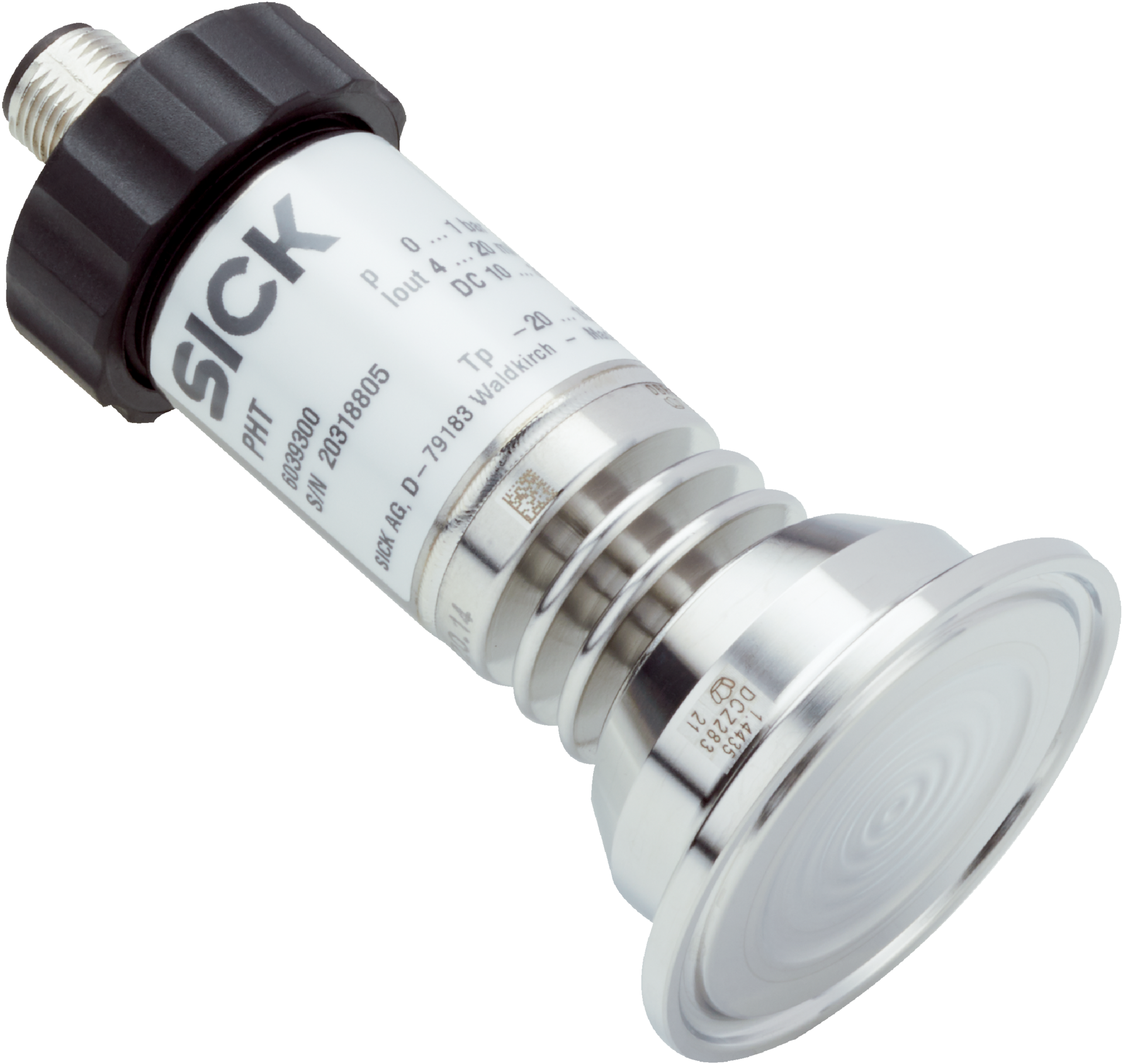

PHT-RB010SD40S0AMS0Z | Pressure sensors
The SICK PHT-RB010SD40S0AMS0Z pressure sensor offers precise gauge pressure measurement from 0 to 10 bar for liquid and gaseous media, featuring robust stainless steel construction and high accuracy for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB010SD40S0AMS0Z | Pressure sensors
Brand: SICK
SKU: 6039310
Alternatively Known As: Pressure transmitter, gauge pressure sensor, industrial pressure sensor, 4-20mA pressure sensor, stainless steel pressure sensor
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 10 bar
- Process temperature: –20 °C to +150 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 10 V) / 0.02 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp (DIN 32676) DN 40
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating temperature: –20 °C to +80 °C
- Storage temperature: –40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Measuring range from 0 to 10 bar
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (DIN 32676) DN 40 process connection
- Wetted parts made of 316L stainless steel with FDA approved synthetic oil
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin
- Supply voltage 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- Shock and vibration resistant according to IEC standards
- Certified for EU, UK, China RoHS, and food contact material compliance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and beverage industry
- Automation systems requiring gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient 4-20 mA output signal
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB010SD40S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable gauge pressure measurement.
