PHT-RB010SS10S0AFT0Z | Pressure sensors

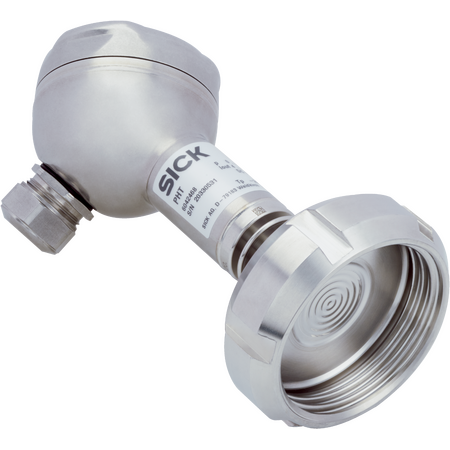

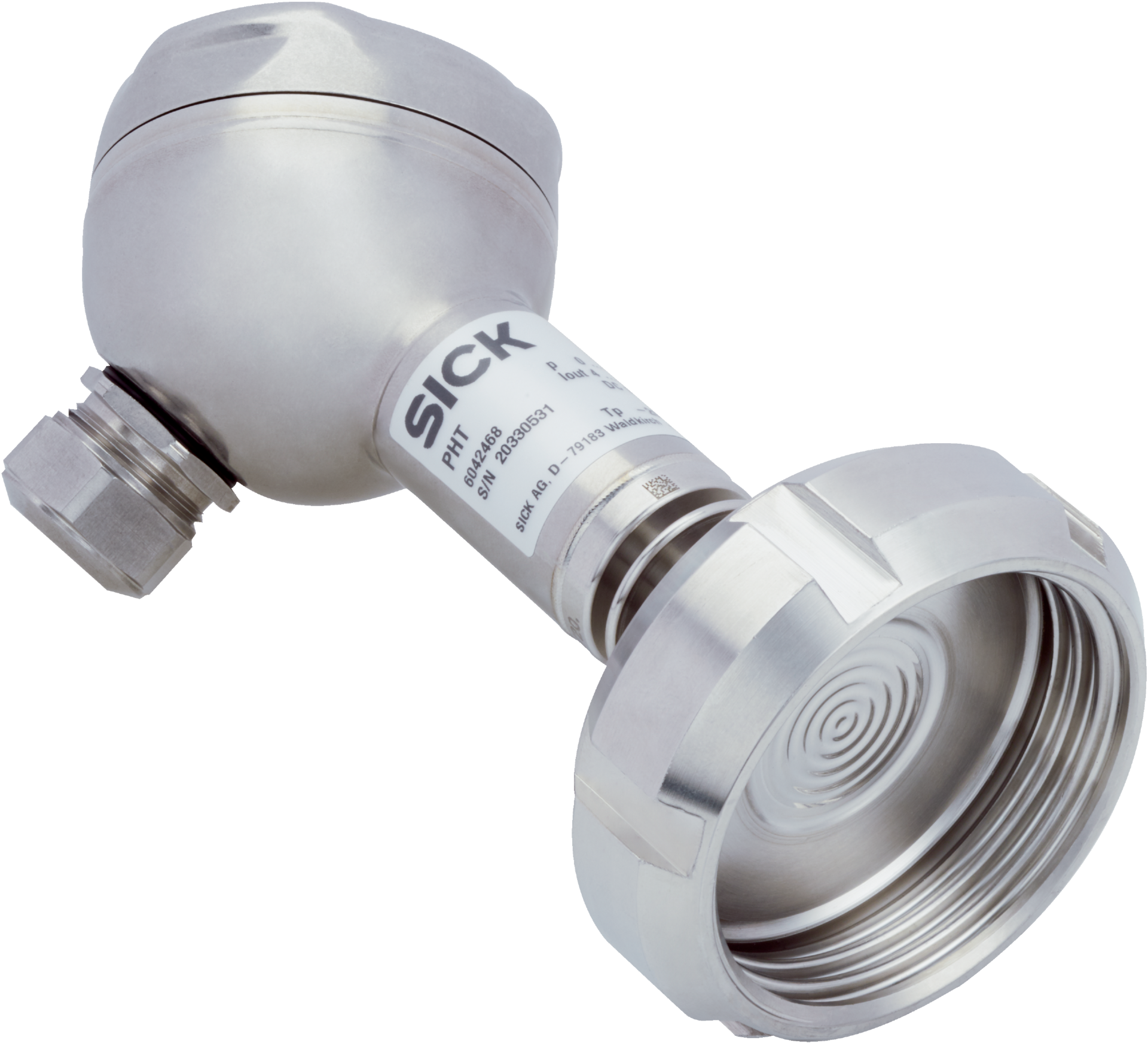

The SICK PHT-RB010SS10S0AFT0Z pressure sensor offers precise gauge pressure measurement from 0 to 10 bar for liquid and gaseous media, featuring robust stainless steel construction and IP67 protection for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB010SS10S0AFT0Z | Pressure sensors
Brand: SICK
SKU: 6042468
Alternatively Known As: Pressure transmitter, pressure transducer, gauge pressure sensor, industrial pressure sensor, 4-20mA pressure sensor
Technical Specifications
- Measuring range: 0 bar to 10 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Process connection: SMS standard 1½'' with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Enclosure rating: IP67
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% BFSL
- Long-term drift: ≤ 0.2% per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 40mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 10 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing and 316L stainless steel wetted parts
- IP67 rated enclosure for dust and water protection
- Overvoltage, short-circuit, and reverse polarity protection
- Fast response time ≤ 10 ms
- High accuracy up to ±0.25% of span (optional)
- Long-term stability with ≤ 0.2% drift per year
- Shock and vibration resistant per IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and beverage industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved internal fluid ensures safe use in food industry minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB010SS10S0AFT0Z pressure sensor is available for immediate purchase, ideal for industrial process control and food industry applications requiring reliable pressure measurement.
