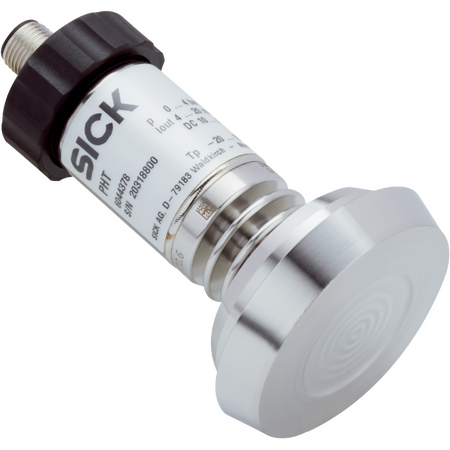

PHT-RB025E520S0AFT0Z | Pressure sensors

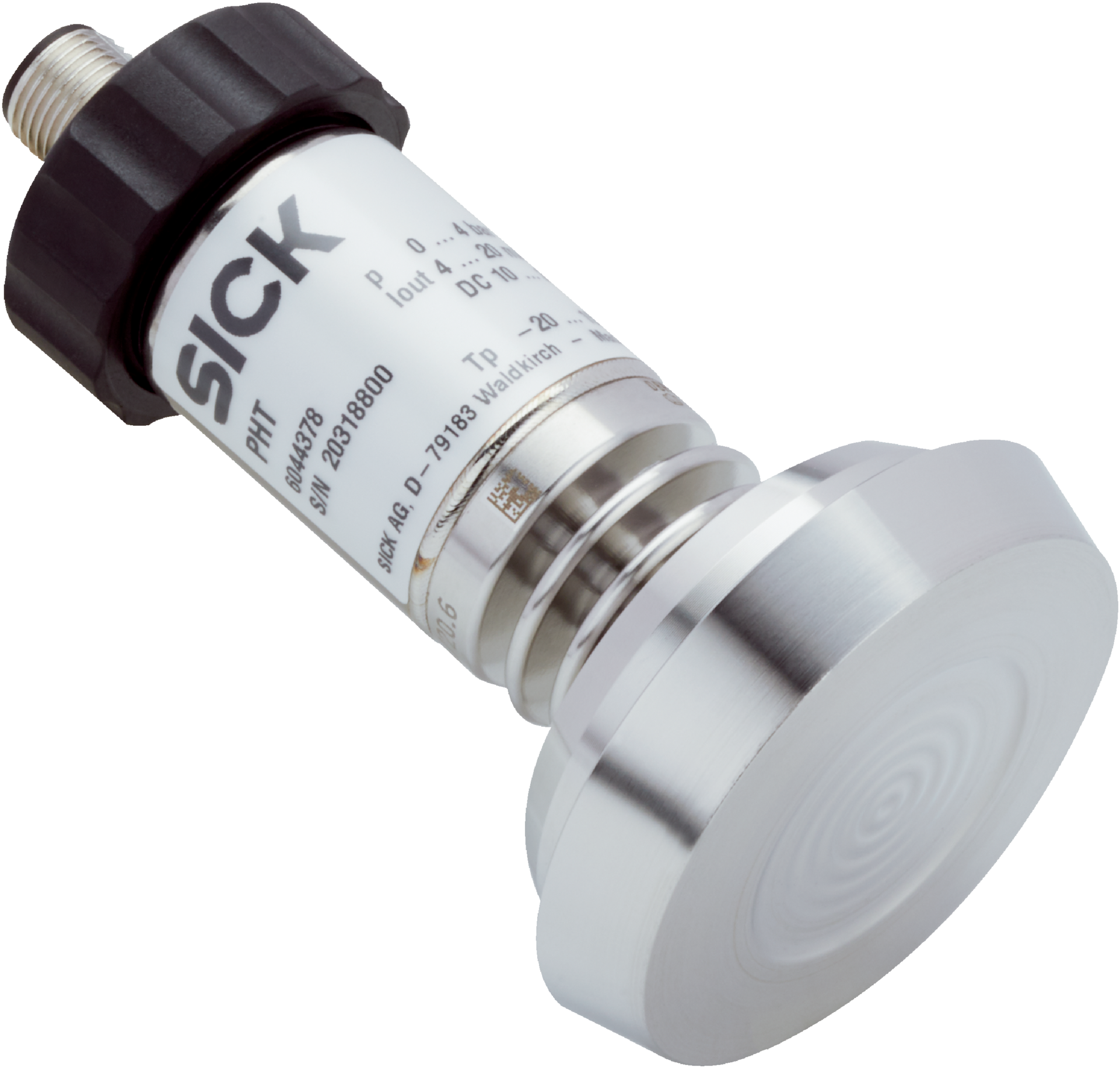

The SICK PHT-RB025E520S0AFT0Z pressure sensor offers precise gauge pressure measurement up to 25 bar for liquid and gaseous media, featuring robust stainless steel construction and IP67 protection for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB025E520S0AFT0Z | Pressure sensors
Brand: SICK
SKU: 6074357
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, 4-20mA Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Measuring range: 0 bar to 25 bar
- Pressure type: Gauge pressure
- Medium: Liquid and gaseous
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Process connection: Conical coupling (DIN 11851) DN 25 with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ± 0.25% of span
- Non-linearity: ≤ ± 0.2% of span (BFSL)
- Non-repeatability: ≤ ± 0.1% of span
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection with conical coupling (DIN 11851) DN 25 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- Overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.25% of span
- Shock and vibration resistant
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB025E520S0AFT0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
