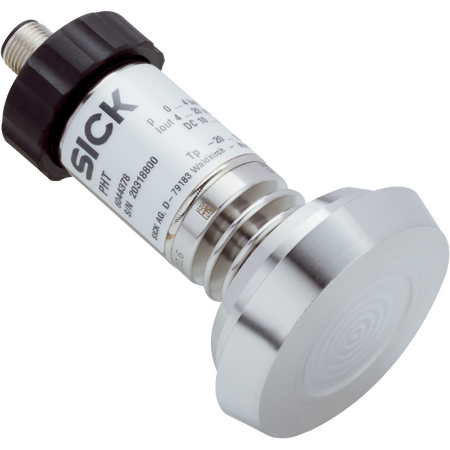

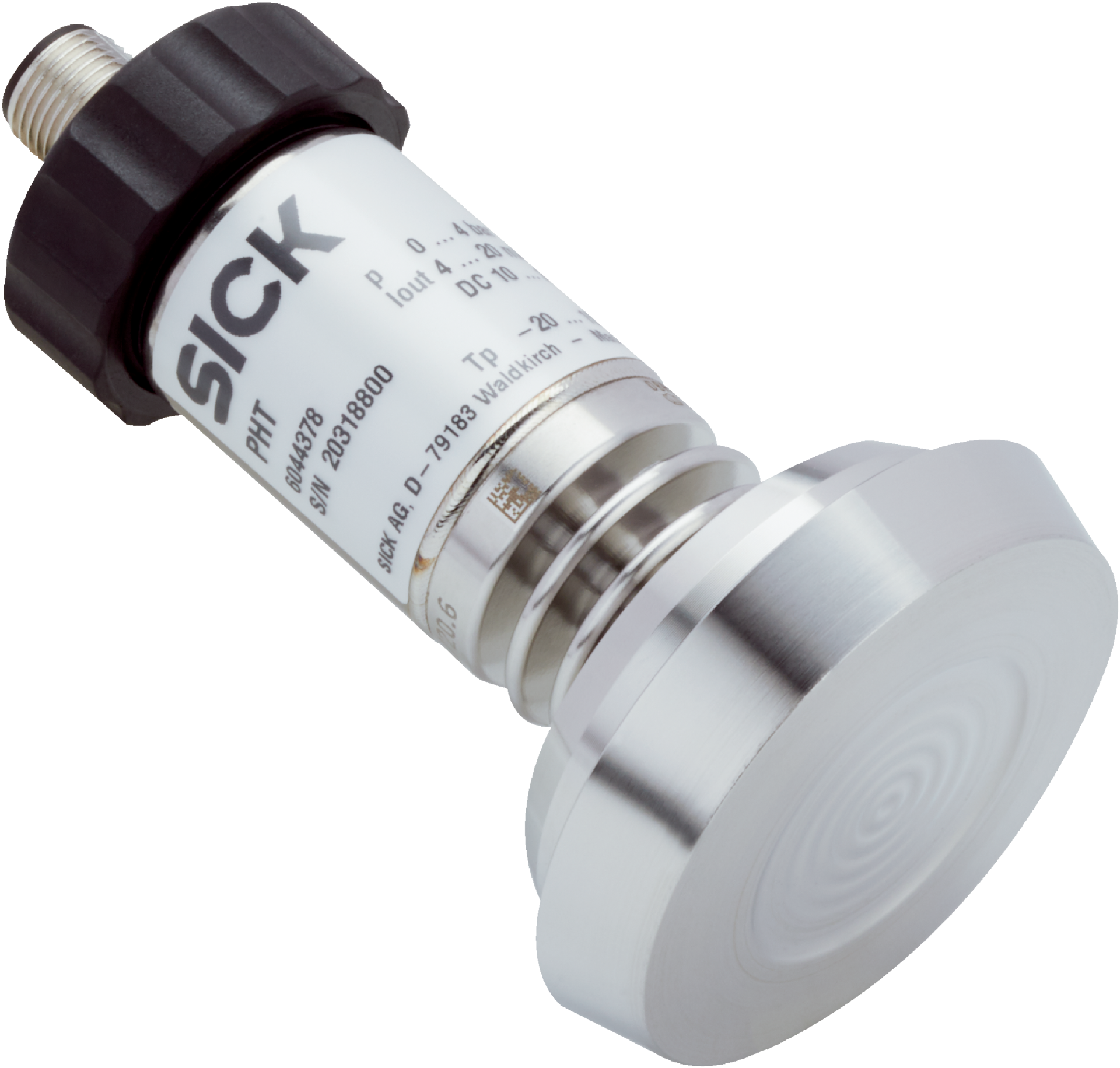

PHT-RB025S540S0ALS0Z | Pressure sensors
The SICK PHT-RB025S540S0ALS0Z pressure sensor offers precise gauge pressure measurement up to 25 bar for liquid and gaseous media, featuring robust stainless steel construction and high accuracy for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB025S540S0ALS0Z | Pressure sensors
Brand: SICK
SKU: 6039374
Alternatively Known As: Pressure transmitter, gauge pressure sensor, industrial pressure sensor, 4-20mA pressure sensor, stainless steel pressure sensor
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 25 bar
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Connection type: L-connector (DIN EN 175301-803 A)
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP65
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating ambient temperature: –20 °C to +80 °C
- Storage temperature: –40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Measuring range from 0 to 25 bar
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection with conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts made of 316L stainless steel with FDA approved synthetic oil
- Housing made of stainless steel 1.4571
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 for dust and water protection
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- Shock and vibration resistant according to IEC standards
- Certified with EU, UK declarations of conformity and China RoHS
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor integration and electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and beverage industry
- Hydraulic and pneumatic systems requiring gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- Complies with China RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB025S540S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable gauge pressure measurement.
