PHT-RB025SD40S0AMS0Z | Pressure sensors

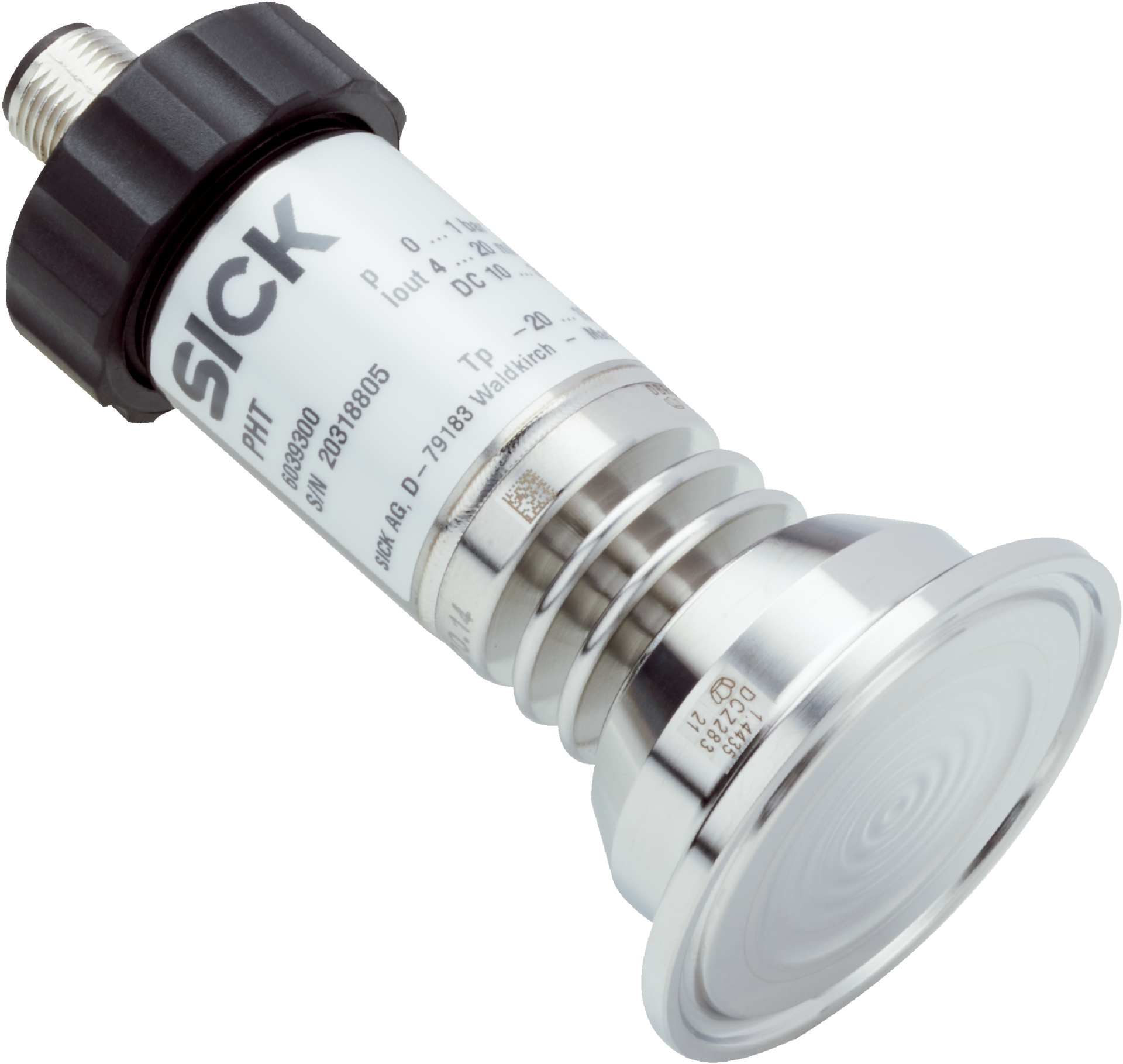

The SICK PHT-RB025SD40S0AMS0Z pressure sensor offers precise gauge pressure measurement up to 25 bar for liquid and gaseous media, featuring robust stainless steel construction and advanced electrical safety protections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

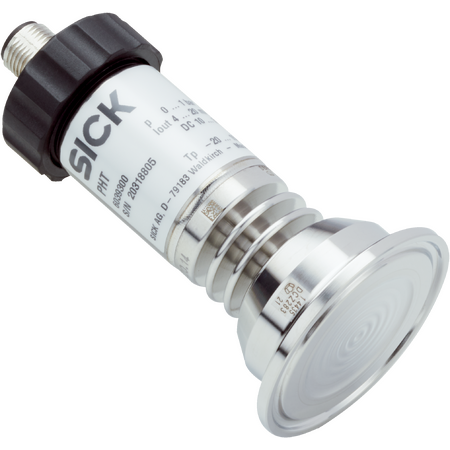

Product Name/Title: PHT-RB025SD40S0AMS0Z | Pressure sensors
Brand: SICK
SKU: 6039311
Alternatively Known As: Pressure Transmitter, Pressure Gauge Sensor, Industrial Pressure Sensor, Clamp Pressure Sensor DN40
Technical Specifications
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (DIN 32676) DN 40 process connection
- Wetted parts made of 316L stainless steel with FDA approved synthetic oil
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and beverage industry
- Automation systems requiring gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long product life reducing waste
- FDA approved synthetic oil ensures safe use in food industry applications
- High accuracy and stability reduce need for frequent recalibration and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB025SD40S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable pressure measurement.
