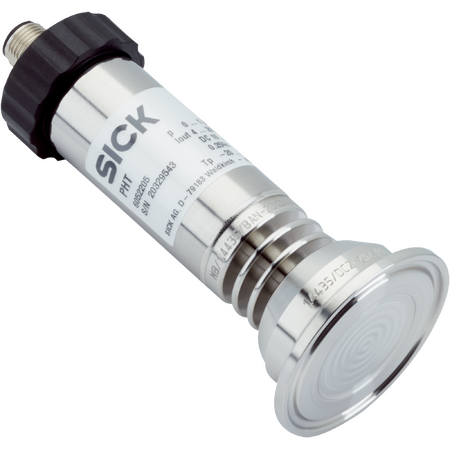

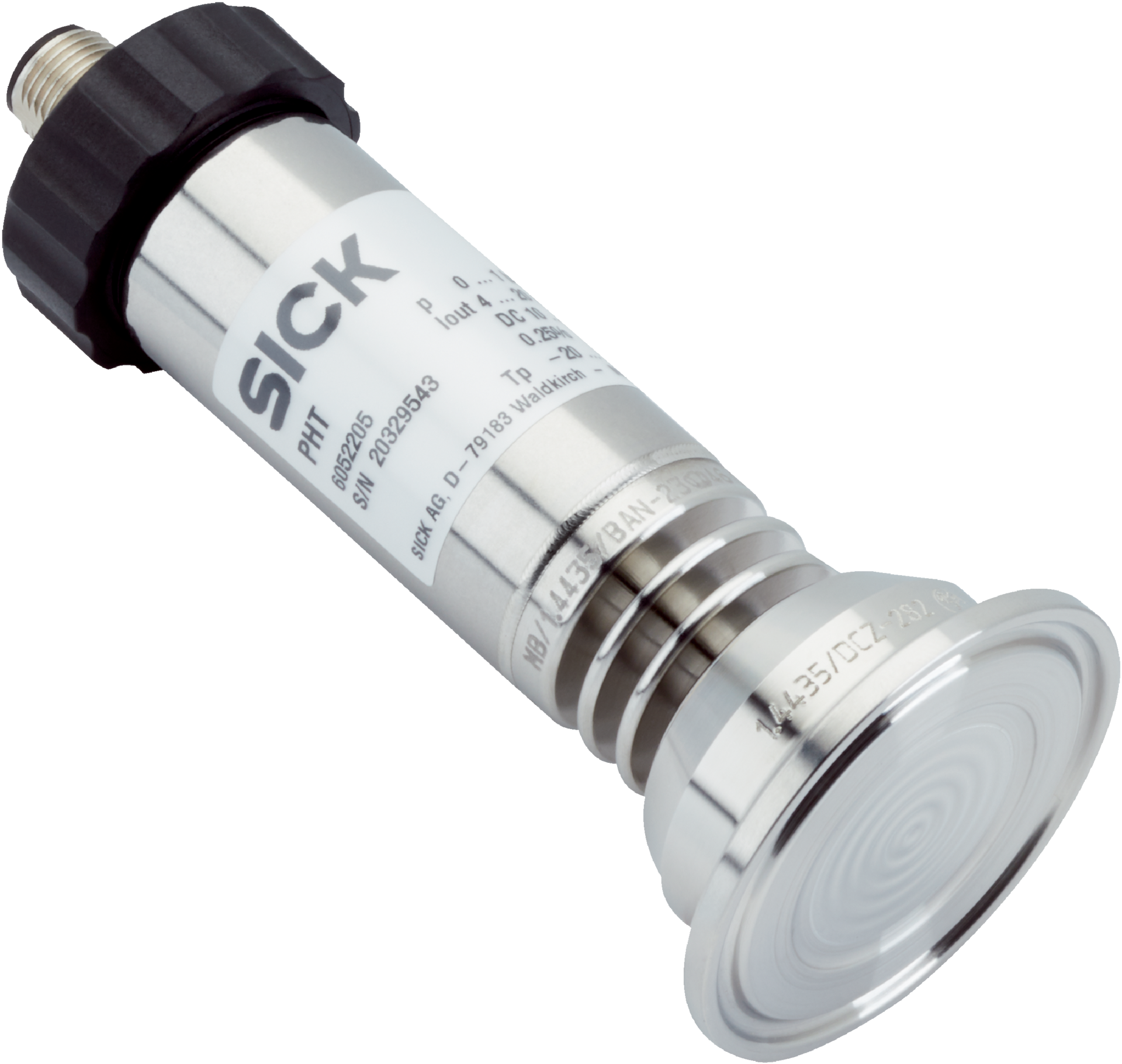

PHT-RB025ST10S0AFT0Z Pressure sensors

BRAND: SICK
SKU: 6039409
$2,008.20 List price: $2,524.20
+ −
30 Days Return Electricians Unlock Trade Access
The SICK PHT-RB025ST10S0AFT0Z pressure sensor offers precise gauge pressure measurement for liquids and gases up to 25 bar

Product Name/Title: PHT-RB025ST10S0AFT0Z | Pressure sensors

Brand: SICK

SKU: 6039409

Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, Tri-Clamp Pressure Sensor, 4-20mA Pressure Sensor

Technical Specifications
  • Medium: Liquid, gaseous
  • Pressure type: Gauge pressure
  • Measuring range: 0 bar to 25 bar
  • Process temperature: -20 °C to +150 °C
  • Output signal: 4 mA to 20 mA, 2-wire
  • Process connection: Tri-Clamp 1 ½" (DIN 32676)
  • Wetted parts: 316L stainless steel
  • Internal transmission fluid: FDA approved synthetic oil
  • Housing material: Stainless steel 1.4571
  • Supply voltage: 11 V DC to 30 V DC
  • Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
  • Enclosure rating: IP67
  • Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
  • Response time: ≤ 10 ms
  • Long-term drift: ≤ 0.2 % of span per year
  • Shock load: 500 g IEC 60068-2-27
  • Vibration load: 15 g IEC 60068-2-6
  • Dimensions (H x L x W): 120mm x 50mm x 50mm
  • Weight: 0.5 kg
Key Features
  • Measures gauge pressure in liquids and gases
  • Measuring range from 0 to 25 bar
  • Process temperature range from -20 °C to +150 °C
  • Output signal: 4 mA to 20 mA, 2-wire
  • Tri-Clamp 1 ½" process connection (DIN 32676)
  • Wetted parts made of 316L stainless steel
  • Internal transmission fluid is FDA approved synthetic oil
  • Stainless steel 1.4571 housing with field housing connection
  • Supply voltage 11 V DC to 30 V DC
  • Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
  • IP67 rated enclosure for dust and water protection
  • High accuracy with ≤ ± 0.5 % of span, optional 0.25 %
  • Fast response time ≤ 10 ms
  • Long-term stability with ≤ 0.2 % drift per year
  • Shock and vibration resistant
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
  • Industrial process monitoring
  • Liquid and gaseous pressure measurement
  • Food and beverage industry due to FDA approved internal fluid
  • General gauge pressure applications
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel construction reduces waste and extends product life
  • FDA approved synthetic oil ensures safe use in food industry, minimizing contamination risks
  • Low power consumption with efficient 4-20 mA output
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific terms.

Available Now

The SICK PHT-RB025ST10S0AFT0Z pressure sensor is available for immediate purchase, ideal for industrial and hygienic pressure measurement applications.
