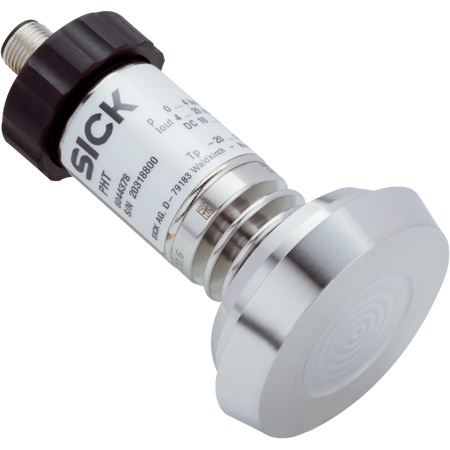

PHT-RB1X0E540S0A5S0Z | Pressure sensors

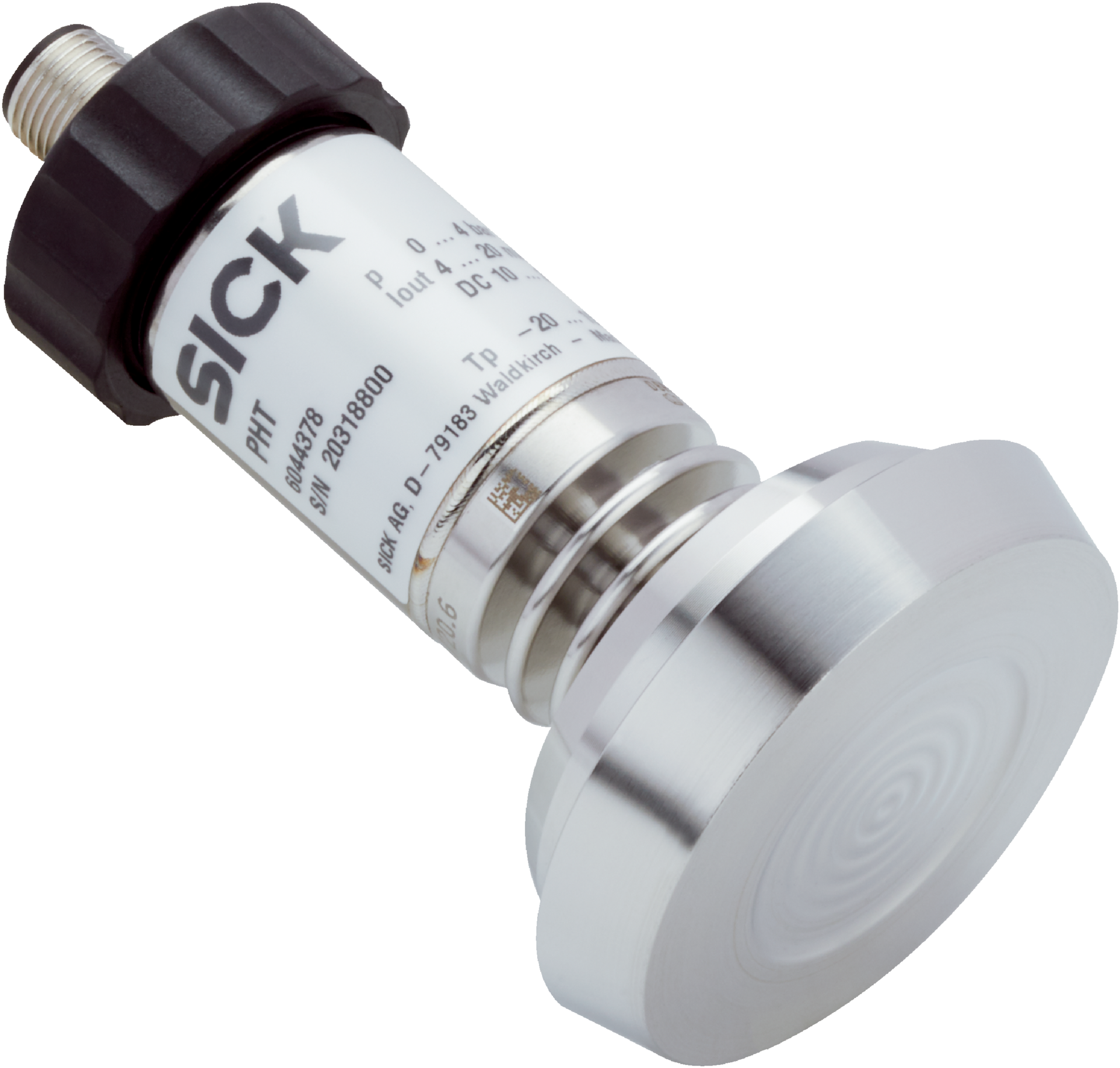

The SICK PHT-RB1X0E540S0A5S0Z pressure sensor offers precise gauge pressure measurement from 0 to 1 bar for liquid and gaseous media, featuring robust stainless steel construction and IP68 protection for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB1X0E540S0A5S0Z | Pressure sensors
Brand: SICK
SKU: 6072423
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, 4-20mA Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Cable length: 3 m flying leads
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP68
- Accuracy: ≤ ±0.25% of span
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 150mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 1 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection with conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- Overvoltage, short-circuit, and reverse polarity protection
- IP68 rated enclosure for protection against dust and water
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High mechanical shock and vibration resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards to ensure proper connection and calibration.
Applications
- Liquid and gaseous medium pressure measurement
- Industrial process control requiring gauge pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
- Harsh environments requiring IP68 rated sensors
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB1X0E540S0A5S0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable gauge pressure measurement.
