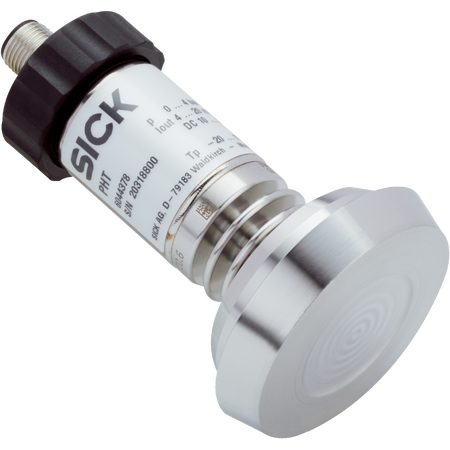

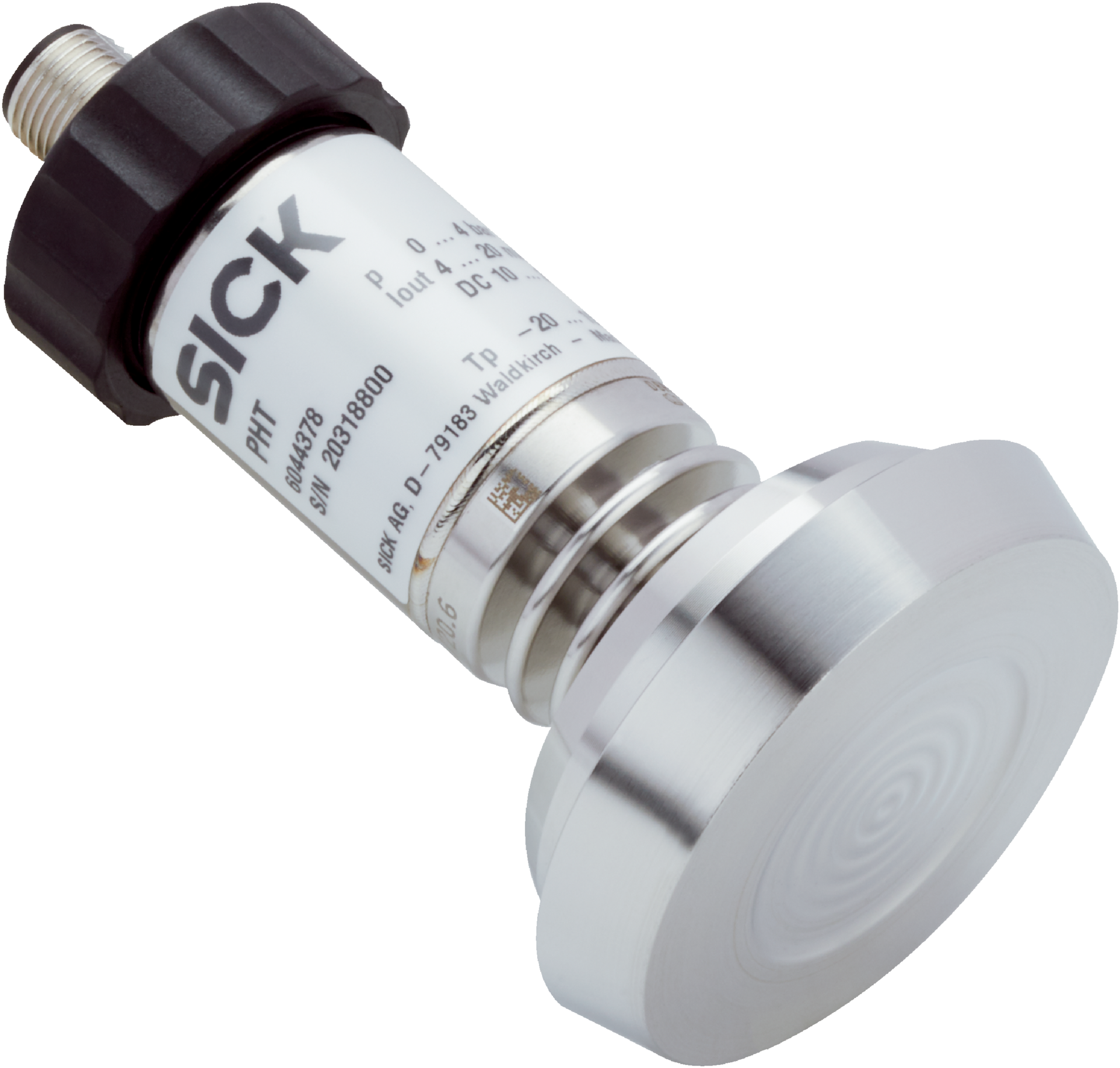

PHT-RB1X0S550S0ALS0Z | Pressure sensors
The SICK PHT-RB1X0S550S0ALS0Z pressure sensor offers precise gauge pressure measurement from 0 to 1 bar for liquid and gaseous media, featuring robust stainless steel construction and high electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB1X0S550S0ALS0Z | Pressure sensors
Brand: SICK
SKU: 6039377
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, 4-20mA Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 1 bar
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Connection type: L-connector (DIN EN 175301-803 A)
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP65
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Non-linearity: ≤ ± 0.2 % of span
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- Operating temperature: –20 °C to +80 °C
- Storage temperature: –40 °C to +100 °C
- Shock load: 500 g
- Vibration load: 15 g
- Dimensions (H x L x W): 120mm x 150mm x 80mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Measuring range from 0 bar to 1 bar
- Process temperature range from –20 °C to +150 °C
- Output signal 4 mA to 20 mA, 2-wire
- Process connection with conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP65 for dust and water protection
- Long-term stability with ≤ 0.2 % span drift per year
- High shock and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process monitoring for liquid and gaseous media
- Food and beverage industry due to FDA approved internal transmission fluid
- General pressure measurement in manufacturing and automation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RB1X0S550S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise gauge pressure measurement.
