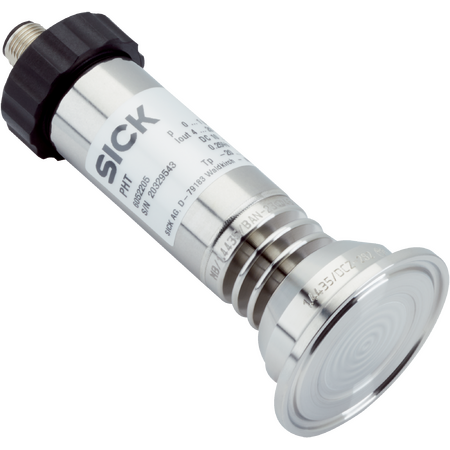

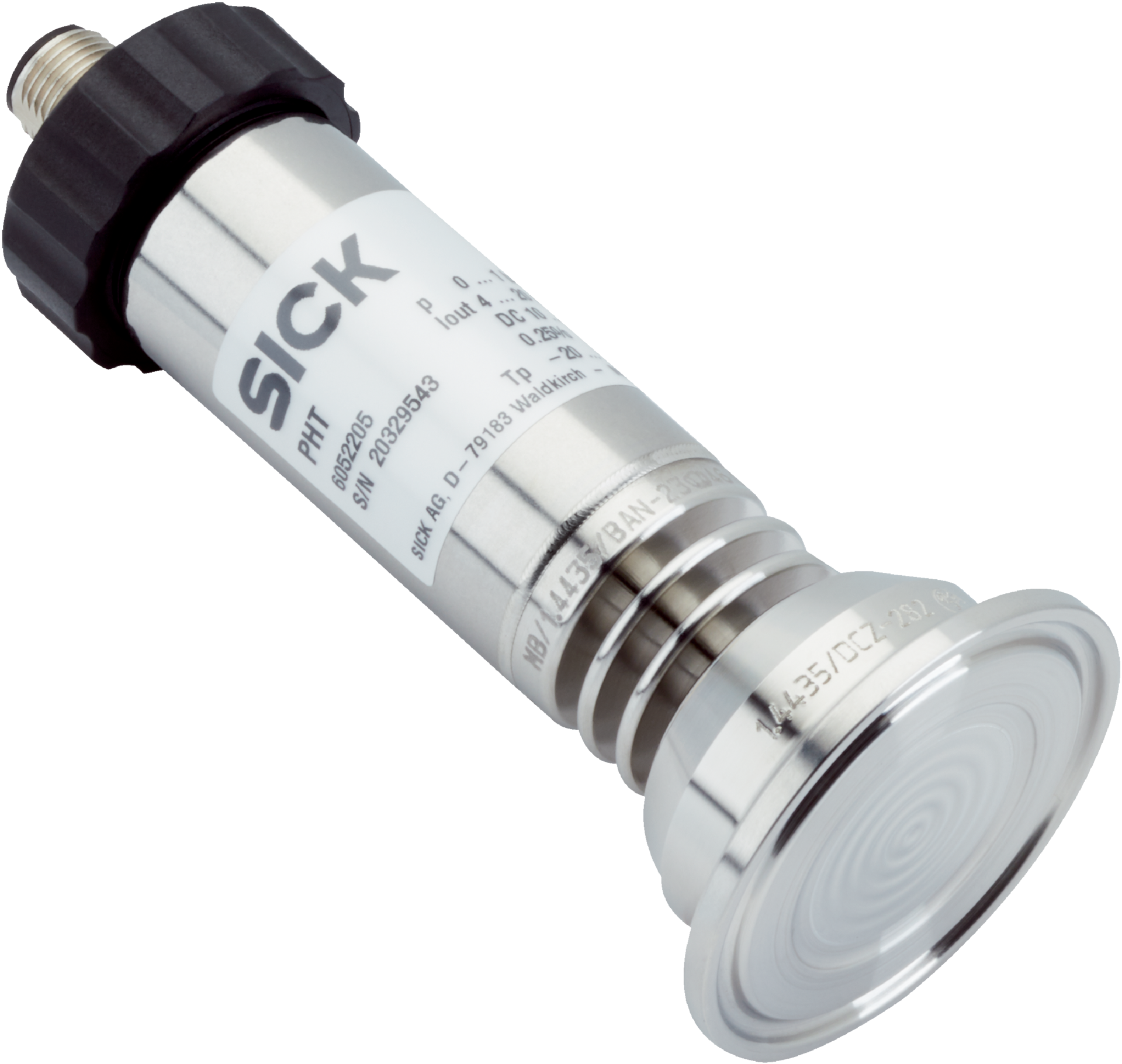

PHT-RB1X0ST20S0AMS0Z | Pressure sensors
The SICK PHT-RB1X0ST20S0AMS0Z is a high-precision pressure sensor designed for gauge pressure measurement in liquids and gases, featuring robust stainless steel construction, FDA approved internal fluid, and IP67 protection for reliable industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB1X0ST20S0AMS0Z | Pressure sensors
Brand: SICK
SKU: 6061176
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, Tri-Clamp Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 1 bar
- Process temperature range: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 10 V) / 0.02 A [Ohm])
- Process connection: Tri-Clamp 2" (DIN 32676)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: FDA approved synthetic oil
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5% of span (optional 0.25%)
- Non-linearity: ≤ ± 0.2% of span (BFSL)
- Non-repeatability: ≤ ± 0.1% of span
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating ambient temperature: –20 °C to +80 °C
- Storage temperature: –40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 1 bar
- Suitable for liquid and gaseous media
- Process connection with Tri-Clamp 2" (DIN 32676)
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Stainless steel 1.4571 housing
- M12 round connector, 4-pin connection type
- Supply voltage range 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 enclosure rating for dust and water protection
- High accuracy with ≤ ± 0.5% of span, optional 0.25%
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% span drift per year
- Shock and vibration resistant according to IEC standards
- Mean time to failure (MTTF) of 403 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and beverage industry due to FDA approved internal transmission fluid
- Harsh environments requiring IP67 rated protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- FDA approved synthetic oil ensures safe use in food industry applications
- Low power consumption with 10 V DC to 30 V DC supply voltage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB1X0ST20S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications requiring precise gauge pressure measurement.
