PHT-RB1X6ST10S0VMZ0Z Pressure sensors

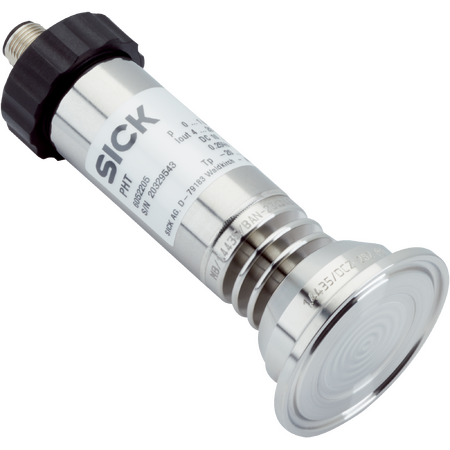

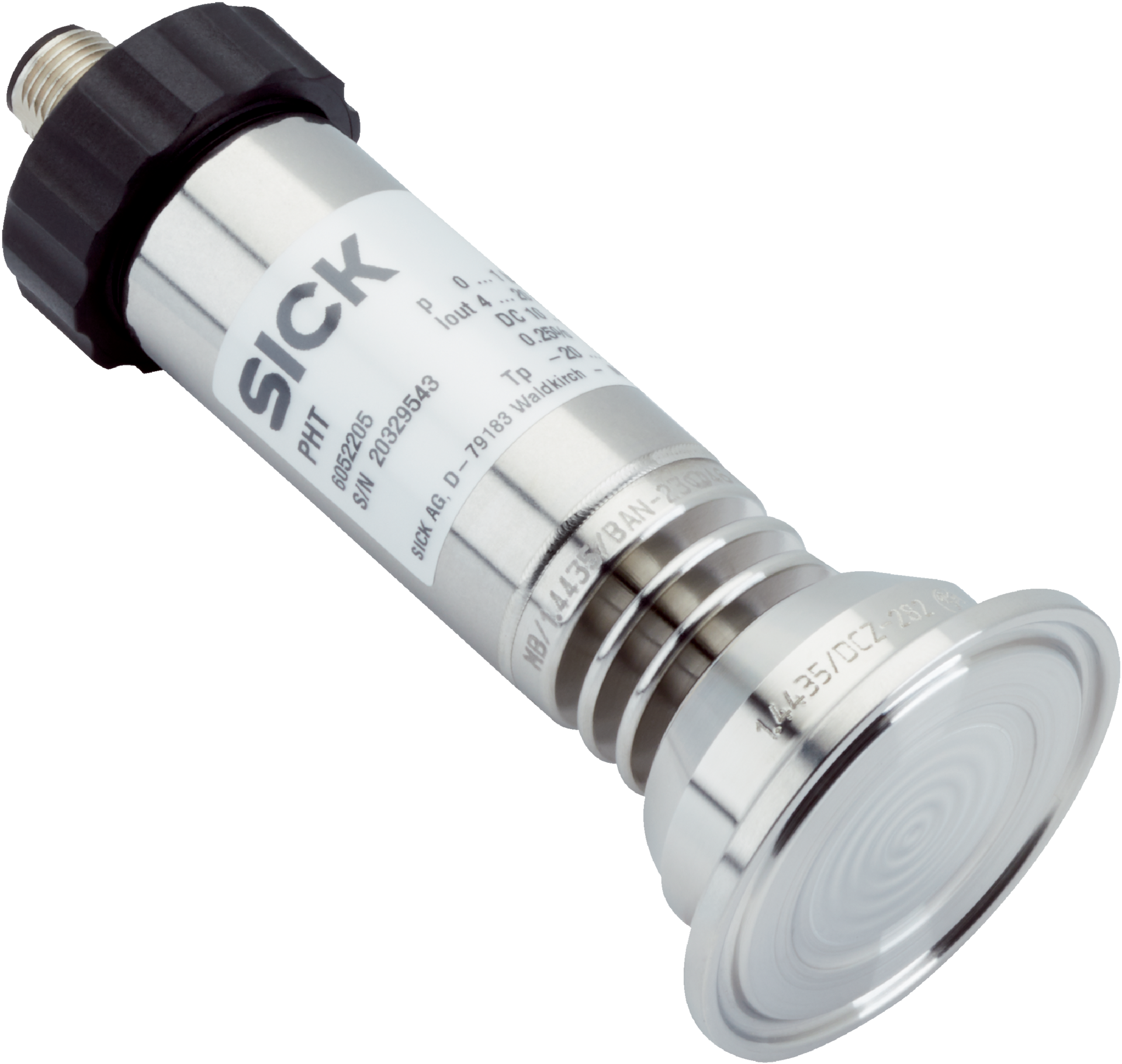

The SICK PHT-RB1X6ST10S0VMZ0Z is a high-precision pressure sensor designed for gauge pressure measurement in liquid and gaseous media
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB1X6ST10S0VMZ0Z | Pressure sensors
Brand: SICK
SKU: 6081231
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, Tri-Clamp Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Measuring range: 0 bar to 1.6 bar
- Pressure type: Gauge pressure
- Output signal: 0 V to 10 V, 3-wire
- Process temperature range: -20 °C to +150 °C
- Supply voltage: 14 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5% of span (optional 0.25%)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 1.6 bar
- Suitable for liquid and gaseous media
- Process connection with Tri-Clamp 1 ½" (DIN 32676)
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Stainless steel 1.4571 housing
- M12 round connector, 4-pin connection type
- Supply voltage range 14 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- High accuracy with ≤ ± 0.5% of span, optional 0.25%
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% drift per year
- Operating temperature range from -20 °C to +80 °C
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and beverage industry applications due to FDA approved internal fluid
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- FDA approved synthetic oil ensures safe use in food industry minimizing contamination risks
- Low power consumption with efficient electrical design
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RB1X6ST10S0VMZ0Z Pressure Sensor is available for immediate purchase, ideal for industrial and hygienic process pressure measurement applications.
