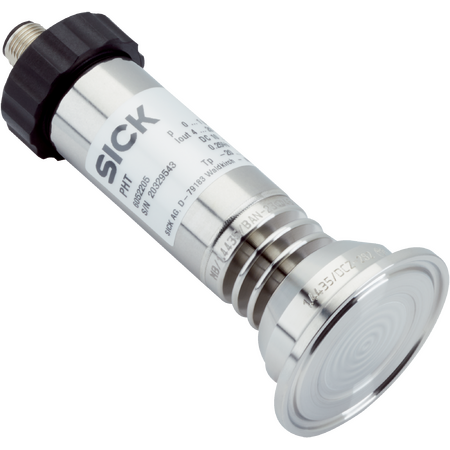

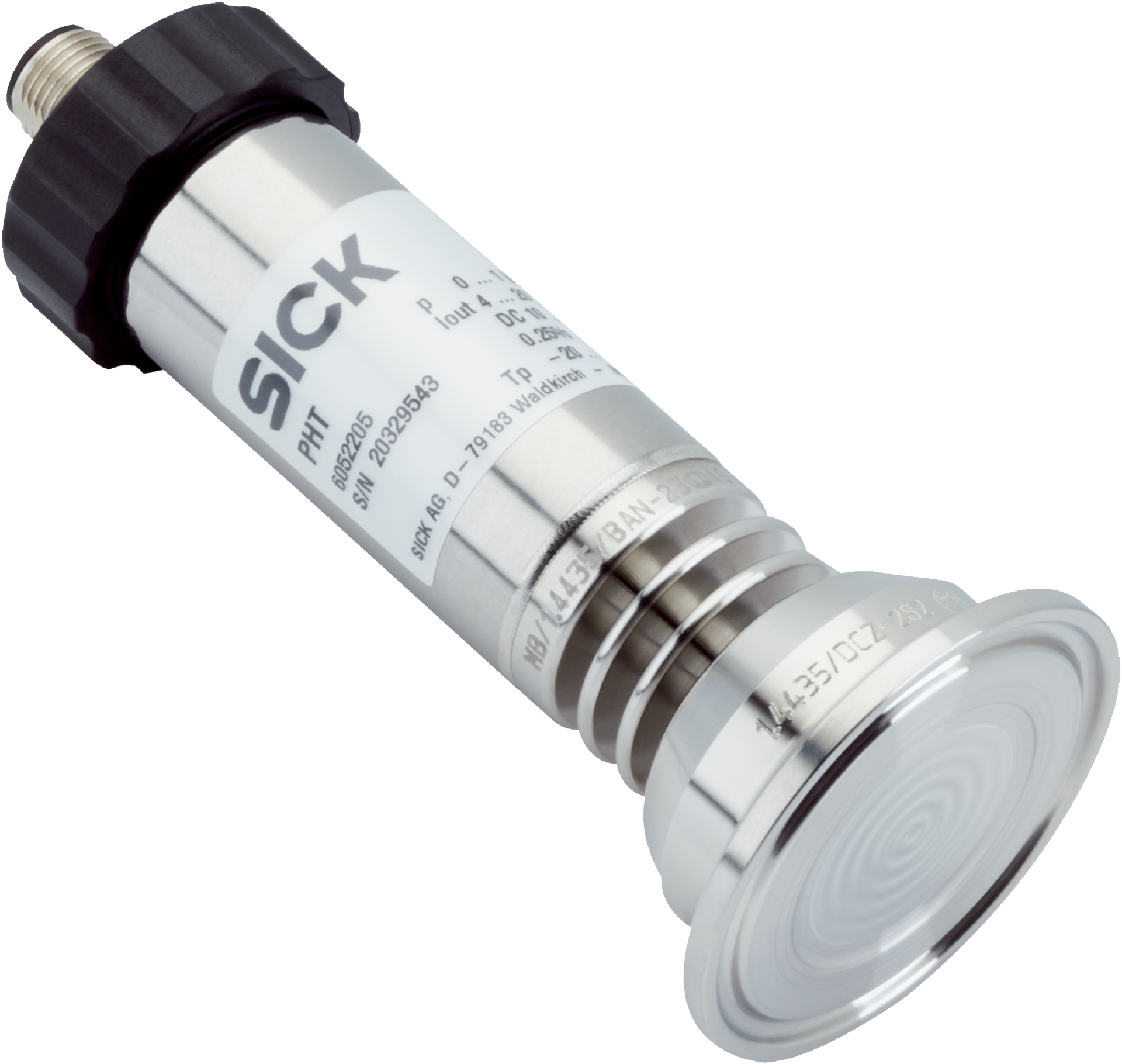

PHT-RB2X5ST20SEAFT0Z | Pressure sensors
The SICK PHT-RB2X5ST20SEAFT0Z pressure sensor offers precise gauge pressure measurement for liquid and gaseous media with a range of 0 to 2.5 bar, featuring robust stainless steel construction and hygienic Tri-Clamp connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB2X5ST20SEAFT0Z | Pressure sensors
Brand: SICK
SKU: 6081089
Alternatively Known As: Gauge Pressure Sensor, Tri-Clamp Pressure Transmitter, Industrial Pressure Sensor 0-2.5 bar
Technical Specifications
- Dimensions (H x L x W): 120mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Measuring range from 0 to 2.5 bar
- Process temperature range from -20 °C to +150 °C
- Output signal 4 mA to 20 mA, 2-wire
- Tri-Clamp 2" (DIN 32676) process connection
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Stainless steel 1.4571 housing with IP67 enclosure rating
- Overvoltage, short-circuit, and reverse polarity protection
- High accuracy with ≤ ± 0.5 % of span
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant according to IEC standards
- Protection class III and CE conformity
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper sealing and electrical connections, especially for hygienic applications.
Applications
- Industrial process control for liquid and gaseous media
- Food and beverage industry due to FDA approved internal fluid
- Measurement of gauge pressure in pipelines and tanks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- FDA approved synthetic oil ensures safe use in food industry without contamination
- Energy efficient 2-wire current output reduces power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RB2X5ST20SEAFT0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring accurate and reliable pressure measurement.
