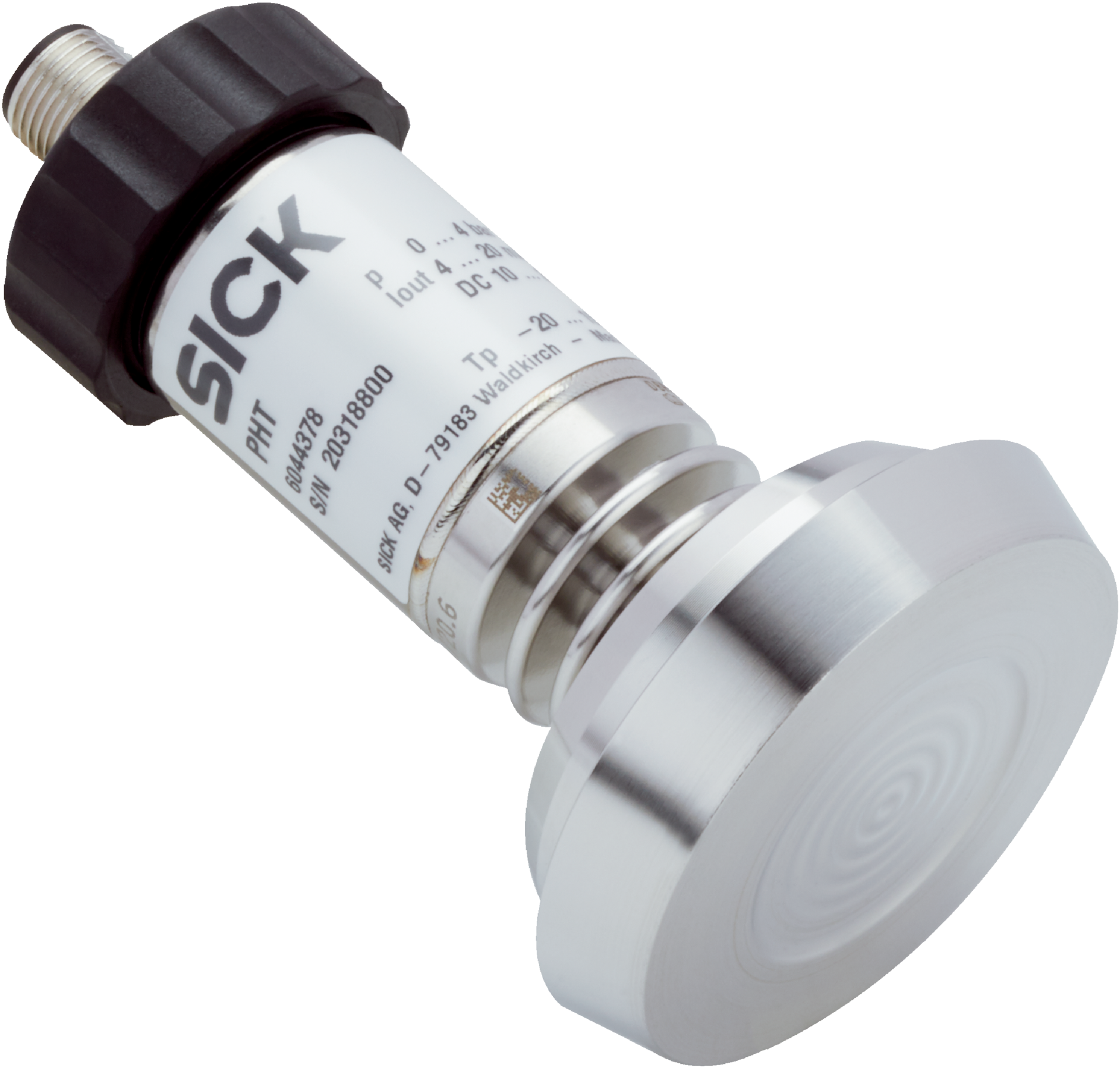

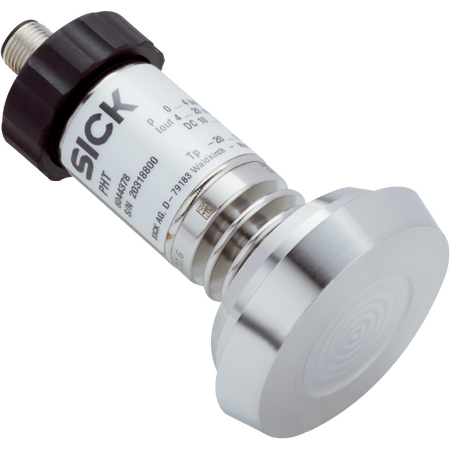

PHT-RB6X0S540S0ALS0Z | Pressure sensors
The SICK PHT-RB6X0S540S0ALS0Z pressure sensor offers precise gauge pressure measurement for liquids and gases up to 6 bar, featuring robust stainless steel construction and reliable 4-20 mA output for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PHT-RB6X0S540S0ALS0Z | Pressure sensors
Brand: SICK
SKU: 6039372
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, 4-20mA Pressure Sensor, Stainless Steel Pressure Sensor
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 6 bar
- Process temperature: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Connection type: L-connector (DIN EN 175301-803 A)
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP65
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% of span (BFSL)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Measuring range from 0 to 6 bar
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Stainless steel 1.4571 housing with IP65 protection
- Conical coupling (DIN 11851) DN 40 process connection
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2% span drift per year
- Fast response time ≤ 10 ms
- High accuracy up to ±0.25% of span (optional)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process monitoring for liquids and gases
- Pressure measurement in food and beverage industry
- Hydraulic and pneumatic system pressure monitoring
- General gauge pressure measurement in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Low power consumption with efficient 4-20 mA output signal
- FDA approved synthetic oil ensures safe use in food industry applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RB6X0S540S0ALS0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring reliable gauge pressure measurement.
