PHT-RBX60E540S0AMS0Z | Pressure sensors
The SICK PHT-RBX60E540S0AMS0Z is a high-precision pressure sensor designed for gauge pressure measurement in liquid and gaseous media, featuring robust stainless steel construction and IP67 protection for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

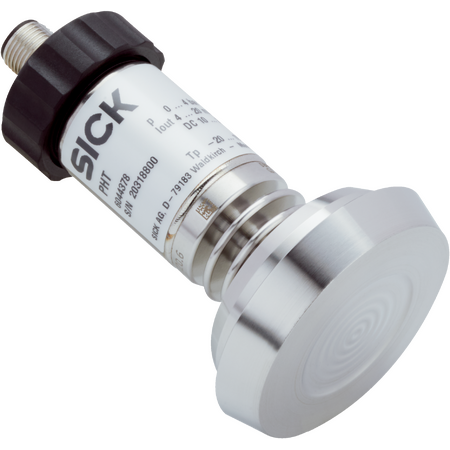

Product Name/Title: PHT-RBX60E540S0AMS0Z | Pressure sensors
Brand: SICK
SKU: 6068915
Alternatively Known As: Gauge Pressure Sensor, Industrial Pressure Transmitter, Stainless Steel Pressure Sensor, DIN 11851 Pressure Sensor
Technical Specifications
- Measuring range: 0 bar to 0.6 bar
- Pressure type: Gauge pressure
- Medium: Liquid, gaseous
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.25 % of span
- Non-linearity: ≤ ± 0.2 % of span (BFSL)
- Non-repeatability: ≤ ± 0.1 % of span
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- Operating ambient temperature: –20 °C to +80 °C
- Storage temperature: –40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.6 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection with conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin connection type
- Supply voltage from 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 enclosure rating for dust and water protection
- Long mean time to failure (MTTF) of 403 years
- Fast response time ≤ 10 ms
- High accuracy ≤ ± 0.25 % of span
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved synthetic oil
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- Long service life minimizes electronic waste
- Low power consumption with 4-20 mA output signal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PHT-RBX60E540S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise and reliable pressure measurement.
