PHT-RBX60SD40S0AMS0Z | Pressure sensors

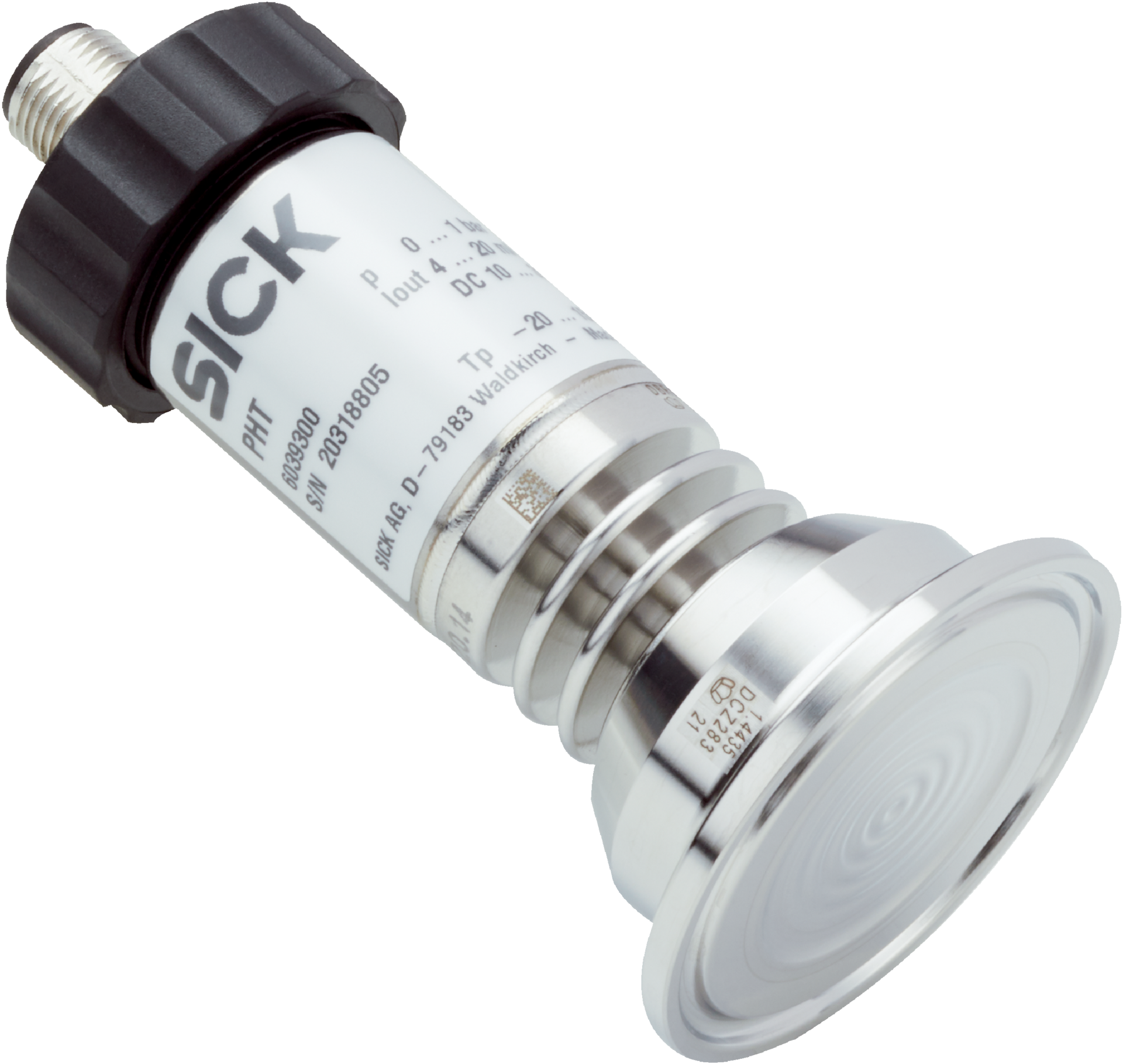

The SICK PHT-RBX60SD40S0AMS0Z pressure sensor offers precise gauge pressure measurement from 0 to 0.6 bar for liquid and gaseous media, featuring robust stainless steel construction and IP67 protection for industrial and food industry applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

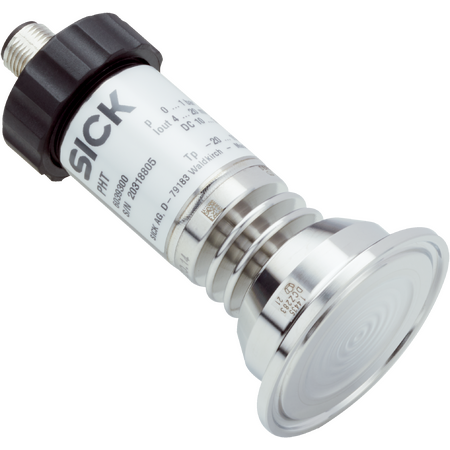

Product Name/Title: PHT-RBX60SD40S0AMS0Z | Pressure sensors
Brand: SICK
SKU: 6039306
Alternatively Known As: Pressure transmitter, gauge pressure sensor, industrial pressure sensor, 4-20mA pressure sensor, clamp pressure sensor DN40
Technical Specifications
- Measuring range: 0 bar to 0.6 bar gauge pressure
- Process temperature range: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Process connection: Clamp (DIN 32676) DN 40
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Response time: ≤ 10 ms
- Accuracy: ≤ ±0.5% of span (optional 0.25%)
- Non-linearity: ≤ ±0.2% BFSL
- Long-term drift: ≤ 0.2% of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Connection type: M12 round connector, 4-pin
- Dimensions (H x L x W): 120mm x 120mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 0.6 bar
- Suitable for liquid and gaseous media
- Clamp (DIN 32676) DN 40 process connection with 316L stainless steel wetted parts
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy up to ±0.25% of span (optional)
- Fast response time ≤ 10 ms
- Robust stainless steel 1.4571 housing with IP67 protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long-term stability with ≤ 0.2% span drift per year
- Shock and vibration resistant per IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
- Harsh environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- FDA approved internal fluid ensures safe use in food industry minimizing contamination risks
- Low power consumption with 4-20 mA output signal reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RBX60SD40S0AMS0Z pressure sensor is available for immediate purchase, ideal for industrial process control and food industry applications requiring precise gauge pressure measurement.
