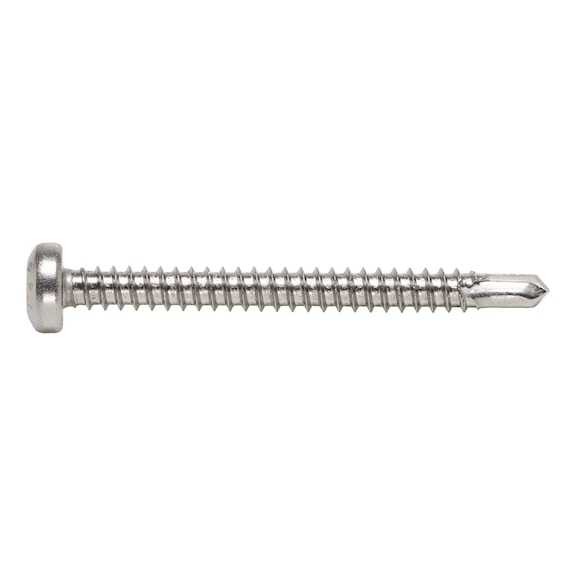

Pias® Drilling Screw | Stainless Steel A2 | AW Drive | Self-Tapping | @Pack of 50 | by Wurth
Pias® drilling screws are crafted from stainless steel A2, ensuring corrosion resistance and durability. With a unique drilling tip, these screws allow for easy installation without the need for center-punching, making them ideal for fastening aluminum profiles to substructures. Designed for professional use, they significantly reduce assembly time and provide optimal torque transmission with the AW drive.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Stainless Steel A2 | AW Drive | Self-Tapping | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 20614213
Alternatively Known As: Self-drilling screw, Stainless steel drilling screw, AW drive screw, Flat head drilling screw, Aluminium fastening screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: AW
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Aluminum
- Nominal diameter: 4.2 mm
- Length: 13 mm
- Head diameter: 8 mm
- Head height: 3.45 mm
- Drill tip length: 4.4 mm
- Screw-thread length with drill tip: 10.5 mm
- Internal drive: AW20
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Min./max. attachment thickness: 2-5.5 mm
- Approval: ETA-10/0184
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 3.45mm x 13mm x 8mm
- Weight: 0.02 kg
Key Features
- Made of stainless steel A2 for corrosion resistance
- Drilling tip allows drilling without centre-punching
- Thread forming for fastening all in one operation
- Assembly time reduced by at least 50% using the drill tip
- Optimal torque transmission with AW drive
- Suitable for substructure thickness from 1.5 mm and attachment thickness 2-5.5 mm
- Approved according to ETA-10/0184
Professional Installation Requirements
- Use a suitable drill driver such as a cordless drill driver with depth stop. Impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface of the component.
Applications
- Fastening aluminium profiles to aluminium substructures up to 3 mm thick
- Suitable for component combinations tI/tII according to approval ETA-10/0184
- Ideal for aluminium/aluminium fastening with diameters 4.2 mm and 4.8 mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel A2 which is recyclable
- Reduces assembly time by 50%, lowering energy consumption during installation
Warranty Information
Wurth offers standard warranty against manufacturing defects; please refer to Wurth's warranty policy for details.
Available Now
Wurth pias® drilling screw flat head with AW drive 50 PCS is available for immediate purchase. Ideal for aluminium profile fastening in construction and manufacturing applications.
