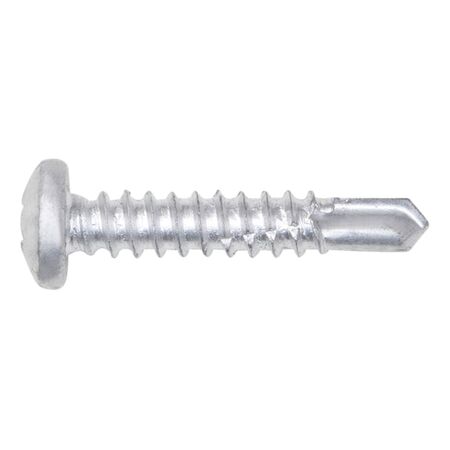

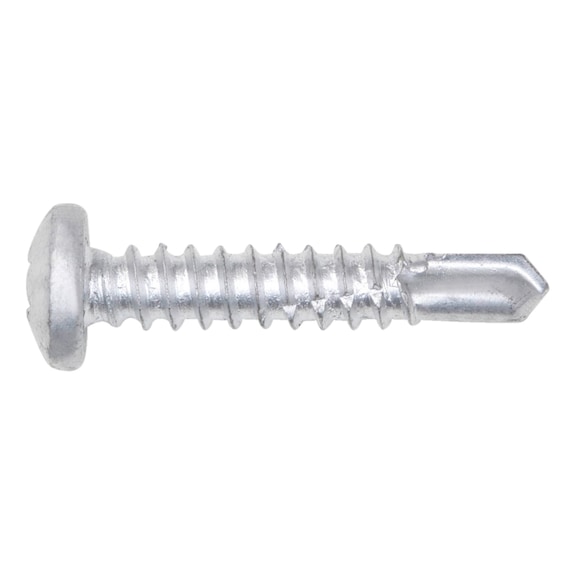

piasta® Drilling Screw | A2 Stainless Steel | Hardened Drill Tip | Self-Tapping | @Pack of 25 | by Wurth
The piasta® drilling screw is designed for fast and secure fastening in aluminum and steel substructures. Made from A2 stainless steel with a hardened drill tip, it features a unique shaped thread for optimal grip and reduces assembly time by at least 50%. Ideal for professional tradespeople, this screw allows for drilling without center punching, making it perfect for aesthetic fittings in visible areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Bimetal
- Surface: Flake zinc
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: H (cone slot)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum
- Nominal diameter (d1): 4.8 mm
- Length (l1): 25 mm
- Head diameter (dk): 9.5 mm
- Head height (k1): 3.5 mm
- Drill tip length (lp): 6 mm
- Screw-thread length with drill tip: 22.5 mm
- Internal drive: H2
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 4.4 mm
- For max. substructure thickness: 3 mm
- Min./max. attachment thickness: 1.5-11 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 3.5mm x 25mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Made of A2 stainless steel with hardened steel drill tip
- Shaped thread for secure fastening
- Cone slot H drive type
- Drill tip reduces assembly time by at least 50%
- Drilling without centre punching
- Thread moulding and securing in one operation
- Suitable for non-approved areas
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and safety.
Applications
- Fastening in aluminum and steel substructures
- Aesthetic fittings in visible areas without additional sealing washer
- Suitable for steel and aluminum materials with thickness up to 4.4 mm
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Wurth standard product warranty against manufacturing defects.
Available Now
Wurth piasta® drilling screws are available for immediate purchase, ideal for fast and secure fastening in aluminum and steel substructures.
