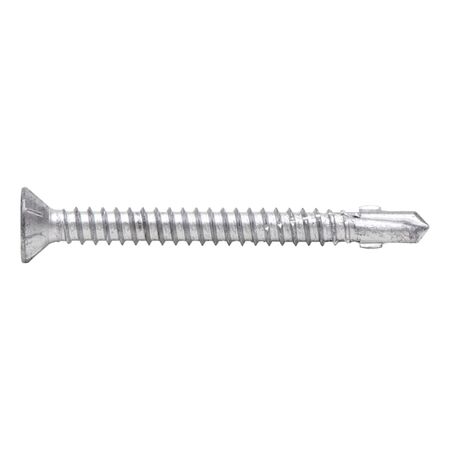

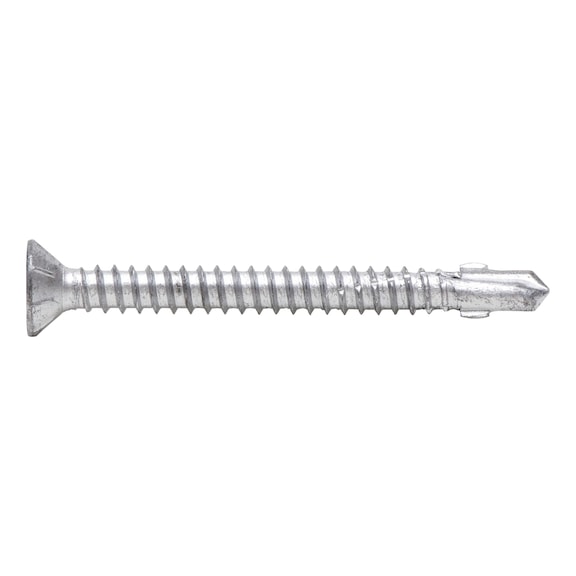

Piasta Wing Type Drilling Screw | Bimetal Construction | RUSPERT® Coated | Self-Tapping Thread | @Pack of 250 | by Wurth
The Piasta Wing Type Drilling Screw features a robust bimetal construction with an A2 stainless steel drilling tip and a RUSPERT® coated surface for enhanced corrosion resistance. Ideal for construction and woodworking projects, this self-tapping screw ensures efficient fastening with its countersunk milling head design and AW drive system, providing optimum centering and fatigue-free screwing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piasta Wing Type Drilling Screw | Bimetal Construction | RUSPERT® Coated | Self-Tapping Thread | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 215885565
Alternatively Known As: Piasta wing screw, Wing type drilling screw, Countersunk milling head screw, AW drive screw, Self-tapping wood screw
Technical Specifications
- Nominal diameter: 5.5 mm
- Length: 65 mm
- Head diameter: 10.8 mm
- Head height: 4.4 mm
- Drill tip length: 11 mm
- Material: Bimetal (A2 stainless steel drilling tip, case hardened steel)
- Surface: Flake zinc silver (RUSPERT® coated)
- Head type: Countersunk milling head
- Internal drive: AW25
- Thread type: Self-tapping screw thread
- Minimum recommended substructure thickness: 2.0 mm
- Maximum material thickness to be drilled through (metal): 5 mm
- Maximum attachment thickness: 45 mm
- Recommended installation speed (idling): 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 65mm x 10.8mm
- Weight: 0.05 kg
Key Features
- Bimetal construction with A2 stainless steel and case hardened steel drilling tip
- RUSPERT® coated (silver) for enhanced corrosion resistance
- Self-tapping thread for efficient fastening
- Countersunk milling head design
- AW drive system for enhanced torque transmission and longer life
- Optimum centring and better mounting output with fatigue-free screwing
- Even force distribution prevents damage to surface-protection coating
Professional Installation Requirements
- Installation should be performed using application tools with a depth stop and claw coupling. Use a suitable drill driver such as a cordless drill driver with depth stop for best results.
Applications
- Suitable for use with soft woods
- Ideal for fastening in construction and woodworking projects
- Used in applications requiring self-tapping screws with countersunk milling heads
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable coating extends product life reducing waste
Warranty Information
Wurth offers standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Piasta Wing Type Drilling Screw Countersunk Milling Head AW25 5.5x65mm 250 PCS is available for immediate purchase. Ideal for construction and woodworking applications requiring durable and corrosion-resistant fastening solutions.
