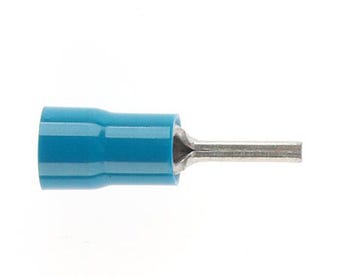

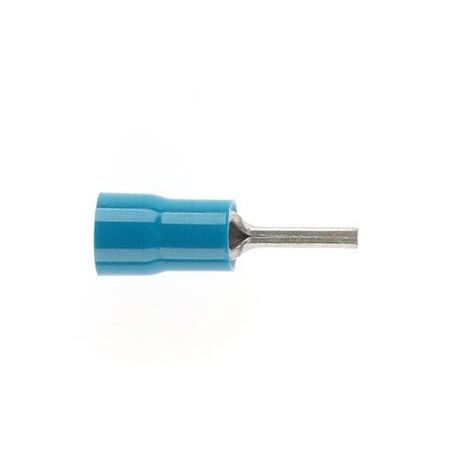

Pin Connector Blue DG Wire 1-2.5mm | Double Grip Design | Copper Sleeve Insulation | 600V by Cabac

BRAND: CABAC
SKU: PC2DG
$27.80 List price: $33.60
+ −
30 Days Return Delivery Options
The Cabac Blue Double Grip Pre-Insulated Pin Connector Terminal (1-2.5mm cable) is designed for high vibration applications, offering enhanced stability, durability, and superior wire insulation with a copper sleeve and PVC insulation.

Product Name/Title: Pin Connector Blue Dg Wire Range 1-2.5mm

Brand: Cabac

SKU: PC2DG

Alternatively Known As: Pre-Insulated Pin Connector, Double Grip Terminal, Vibration Resistant Terminal, Copper Sleeve Terminal, PVC Insulated Pin Connector

Technical Specifications
  • Double grip design for enhanced vibration resistance.
  • Copper terminal body with PVC insulation.
  • Additional copper sleeve for improved wire insulation.
  • Operating temperature: up to 75°C.
  • Operating voltage: 600V.
  • Manufactured to AS 3169 and AS 4437 standards.
  • RoHS and REACH compliant.
  • Dimensions (H x L x W): 30mm x 40mm x 10mm
  • Weight: 0.01 kg
Key Features
  • Double grip design engineered to withstand high vibration conditions.
  • Additional copper sleeve enhances vibration resistance and improves wire insulation.
  • Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
  • Operates within a temperature range up to 75°C.
  • Operating voltage of 600V.
  • Manufactured in strict accordance with international standards including AS 3169 and AS 4437.
  • RoHS and REACH compliant.
Professional Installation Requirements
  • Crimp terminals onto the conductor using a quality crimper specifically designed for this terminal type to ensure a secure and long-lasting connection.
Applications
  • Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems with high vibration levels.
  • Heavy Machinery and Equipment: Suitable for connections in industrial machinery subject to constant vibrations.
  • Marine Applications: Well-suited for marine environments with vibrations from engines and machinery.
  • Power Distribution Systems: Reliable for use in power distribution systems requiring stability and durability.
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS compliant, restricting hazardous substances to reduce environmental impact.
  • REACH compliant, ensuring chemical safety and environmental protection.
Warranty Information

Warranty against manufacturing defects as per Cabac standard policy.

Available Now

The Cabac Blue Double Grip Pre-Insulated Pin Connector Terminal is available for immediate purchase, ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
