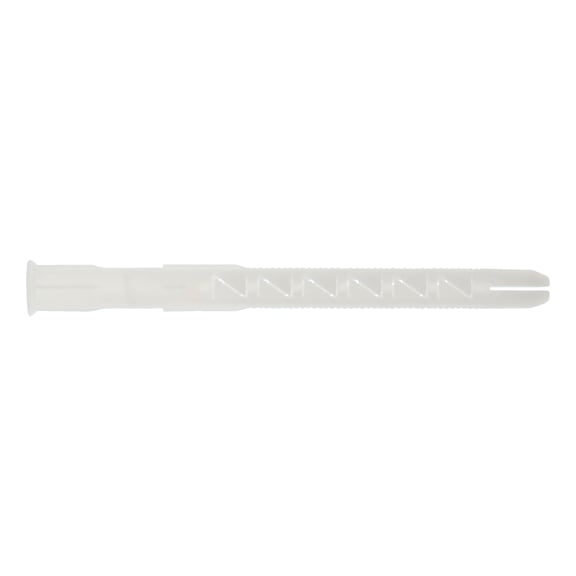

W-RD Plastic Frame Anchor with Collar | 8mm Diameter | Expansion in Four Directions | by Wurth
The W-RD Plastic Frame Anchor with Collar is designed for secure anchoring in concrete, brick, and masonry. With an 8mm diameter and expansion in four directions, it provides a strong load-bearing capacity, making it ideal for both indoor and outdoor applications, including wet environments. Crafted from high-quality polyamide, this anchor is thermally stable from -40°C to +80°C, ensuring durability and reliability in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W-RD Plastic Frame Anchor with Collar | 8mm Diameter | Expansion in Four Directions | by Wurth
Brand: Wurth
SKU: 912808103
Alternatively Known As: Plastic wall anchor, Frame anchor with collar, Nylon anchor, Expansion anchor, Wall plug
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 80 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Screw diameter: 6 mm
- Drill hole depth: 60 mm (h0), 80 mm (h1)
- Type description: W-RD 8, with collar
- Dimensions (H x L x W): 80mm x 8.5mm x 8mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for strong load-bearing capacity
- Anti-rotation lock prevents anchor sleeve spinning
- Hammer-in stop prevents premature expansion during installation
- In-place installation speeds up fitting process
- Can be used outdoors or in wet environments with stainless steel screws
- High-quality polyamide material, halogen and silicone free
- Thermally stable from -40°C to +80°C
- Natural colour without additional dyes or coatings
Professional Installation Requirements
- Professional installation recommended to ensure correct drill hole depth and secure anchorage.
Applications
- Suitable for securing fixtures in concrete, brick, and masonry
- Ideal for indoor and outdoor use including wet rooms
- Used with stainless steel screws for corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from halogen and silicone free polyamide, reducing harmful chemical impact
- Durable material ensures long service life reducing replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth W-RD Plastic Frame Anchor with Collar 200 PCS is available for immediate purchase, ideal for construction, renovation, and maintenance projects requiring reliable anchoring solutions.
