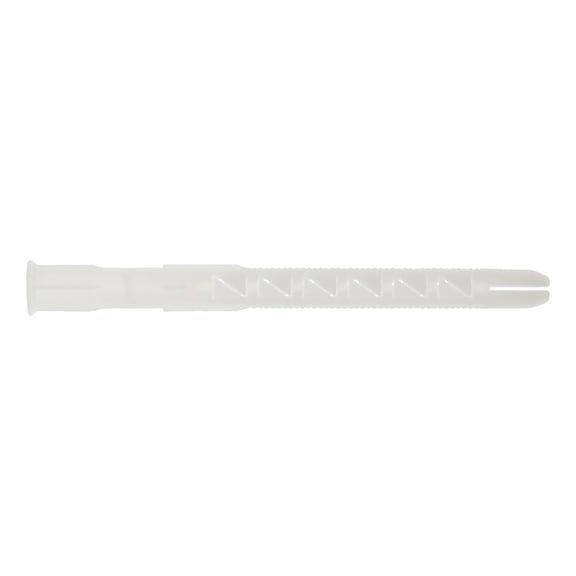

W-RD Plastic Frame Anchor with Collar | 8mm Diameter | Expansion in Four Directions | @Pack of 150 | by Wurth
The W-RD Plastic Frame Anchor with Collar is designed for reliable fastening in construction and building applications. With an 8mm diameter and 100mm length, it features expansion in four directions for excellent load-bearing capacity. Ideal for outdoor and wet room use, this anchor ensures a strong anti-rotation lock and immediate load-bearing capability, making it perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: W-RD Plastic Frame Anchor with Collar | 8mm Diameter | Expansion in Four Directions | @Pack of 150 | by Wurth
Brand: Wurth
SKU: 912808104
Alternatively Known As: Plastic wall anchor, Frame anchor with collar, Expansion anchor, Wurth wall plug
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 100 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Screw diameter: 6 mm
- Drill hole depth: 80 mm
- Type description: W-RD 8, with collar
- Dimensions (H x L x W): 100mm x 8.5mm x 8mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for excellent application
- Anti-rotation lock prevents anchor sleeve spinning
- Hammer-in stop prevents premature expansion during installation
- Immediate load-bearing capacity for time savings
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Thermally stable from -40°C to +80°C
- Halogen and silicone free
- Natural colour without additional dyes or coatings
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper anchorage and load-bearing capacity.
Applications
- Suitable for outdoor and wet room use with stainless steel screws
- Ideal for fastening in base materials requiring strong anti-rotation lock
- Used in construction and building applications requiring reliable load-bearing anchors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen and silicone free materials reduce environmental impact
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth W-RD plastic frame anchor with collar is available for immediate purchase, ideal for construction and building fastening applications.
