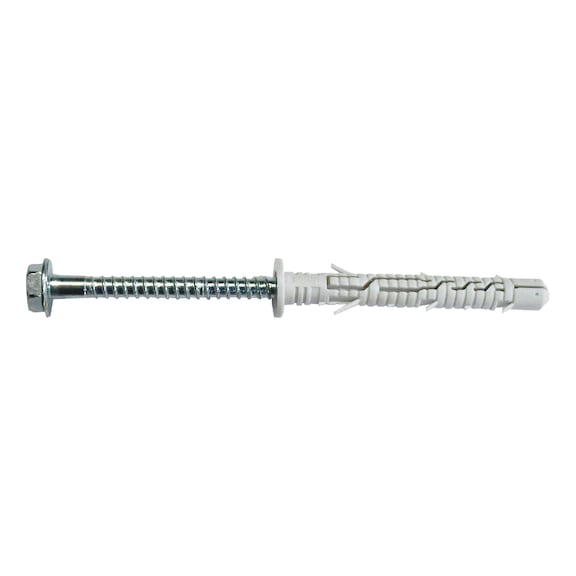

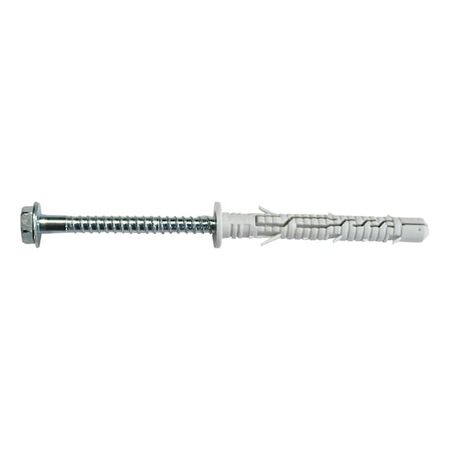

Plastic Frame Anchor W-FRAH 10 | Steel Zinc Plated | Fire Resistance R90 | @Pack of 50 | by Wurth
Plastic Frame Anchor W-FRAH 10 is designed for secure fastening in construction and industrial applications. With a fire resistance rating of R90 and durable steel zinc plating, it ensures long-lasting performance and corrosion resistance. Ideal for securing fixtures to concrete, brick, and masonry, this anchor is perfect for professionals seeking reliable solutions in fire-rated assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-FRAH 10 | Steel Zinc Plated | Fire Resistance R90 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912910601
Alternatively Known As: Plastic Frame Anchor, Frame Fixing Anchor, Zinc Plated Anchor, W-FRA Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 80 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 11 mm
- Fire resistance rating: R90
- Type description: W-FRA
- Dimensions (H x L x W): 80mm x 10mm x 10mm
- Weight: 0.2 kg
Key Features
- Steel zinc plated for corrosion resistance
- Fire resistance rating R90
- Designed for use with 10 mm diameter drill bits
- Suitable for max attachment height of 10 mm
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with fire safety and structural standards.
Applications
- Construction: Securing fixtures to concrete, brick, and masonry
- Industrial: Heavy-duty fastening in structural applications
- General: Suitable for use in fire-rated assemblies
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Plastic Frame Anchor W-FRAH 10 Steel Zinc Plated 50 PCS is available now for immediate purchase. Ideal for construction and industrial fastening applications requiring fire resistance.
