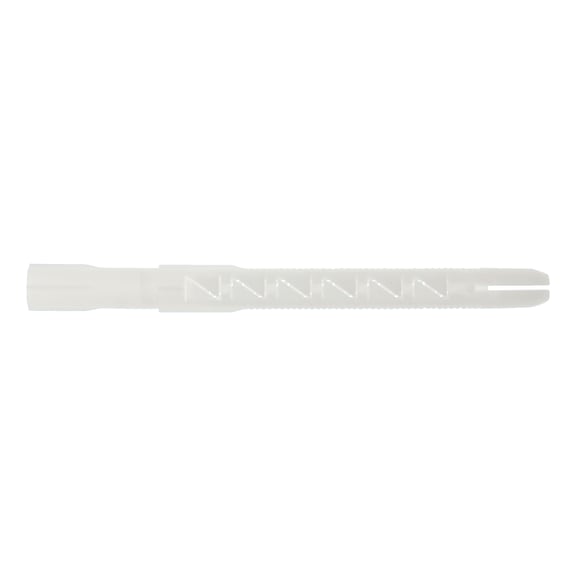

Plastic Frame Anchor W RD 8x60mm | Natural Color | Expansion in Four Directions | by Wurth
Plastic Frame Anchor W RD 8x60mm is designed for reliable fastening in concrete, brick, and masonry. With its unique four-direction expansion feature, it ensures excellent load distribution and immediate load-bearing capacity, making it ideal for both indoor and outdoor applications, including wet rooms. Crafted from high-quality, halogen-free polyamide, this anchor is thermally stable from -40°C to +80°C, ensuring durability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W RD 8x60mm | Natural Color | Expansion in Four Directions | by Wurth
Brand: Wurth
SKU: 912808002
Alternatively Known As: Plastic wall anchor, Frame fixing anchor, Nylon anchor, Expansion anchor without collar
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 60 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Screw diameter: 6 mm
- Drill hole depth: 60 mm
- Type description: W-RD 8, without collar
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for excellent load distribution
- Anti-rotation lock prevents anchor sleeve spinning during installation
- Hammer-in stop prevents premature expansion during installation
- Immediate load-bearing capacity for time savings
- High working loads due to effective expansion and load transmission
- Anchor sleeve made of high-quality polyamide, halogen and silicone free
- Thermally stable from -40°C to +80°C
- Natural colour without additional dyes or coatings
Professional Installation Requirements
- Professional installation recommended to ensure correct drill hole size and proper anchor setting for maximum load capacity.
Applications
- Suitable for use in concrete, brick, and masonry materials
- Ideal for indoor and outdoor applications including wet rooms
- Used with stainless steel screws for enhanced corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from halogen and silicone free materials reducing environmental impact
- Durable design reduces need for frequent replacements
Warranty Information
Wurth provides standard product warranty against manufacturing defects. Please refer to Wurth's warranty policy for detailed terms.
Available Now
The Wurth W RD Plastic Frame Anchor without collar 8x60mm in natural colour is available for immediate purchase. Ideal for construction and building fastening applications.
