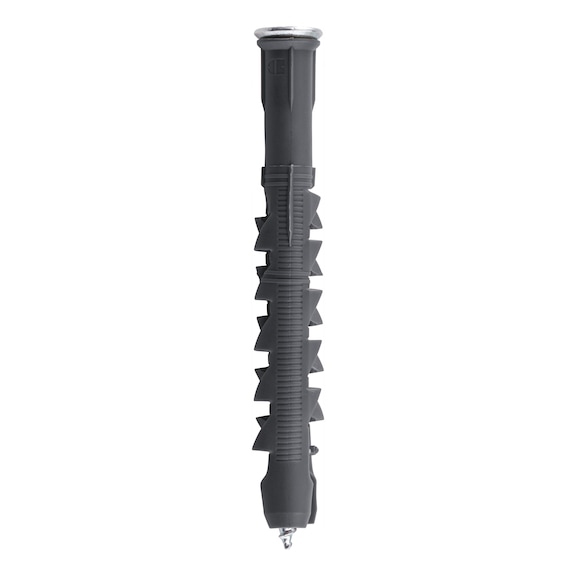

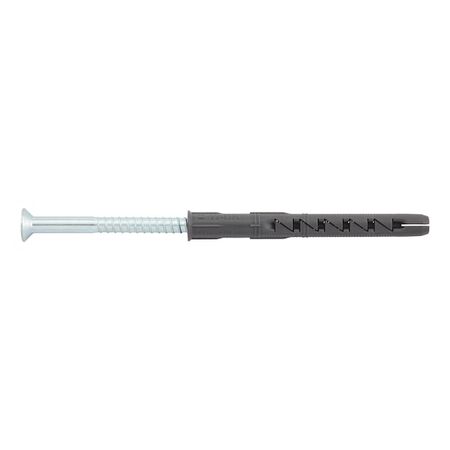

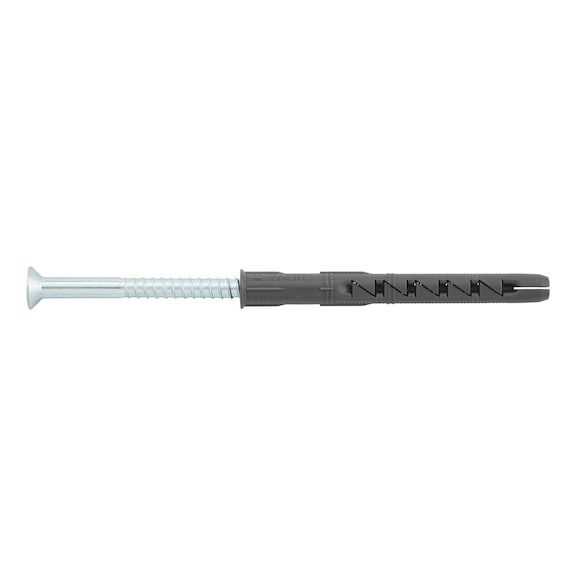

Plastic Frame Fixing with Zinc Plated Steel Screws | Universal Anchor | High Load Capacity | F30 Fire Rating | @Pack of 50 | by Wurth
Plastic frame fixing with zinc plated steel screws offers a universal anchor solution with high load capacity and an F30 fire rating. Perfect for construction and building applications, this fixing is designed for secure anchorage in concrete and masonry, ensuring reliable performance across over 100 building materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with Zinc Plated Steel Screws | Universal Anchor | High Load Capacity | F30 Fire Rating | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912808405
Alternatively Known As: Plastic Frame Fixing Anchor, SHARK UR Anchor, Zinc Plated Countersunk Screw Fixing, Frame Fixing Kit
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 120 mm
- Max. attachment height: 70 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Fire resistance rating: F30
- Screw diameter: 6 mm
- Screw length: 125 mm
- Material of screw: Steel
- Internal drive: AW30
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Min./max. height of fixture: 50-70 mm
- Approval: ETA-08/0190
- Type description: W-UR 8, countersunk head screw
- Dimensions (H x L x W): 120mm x 125mm x 8mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested and approved for over 100 building materials
- High load capacity due to expansion in four directions
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for efficient installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct embedment and load-bearing performance.
Applications
- Suitable for fixing frames in concrete and masonry
- Versatile use with over 100 proven building materials
- Ideal for construction and building applications requiring secure anchorage
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with Zinc Plated Steel Countersunk Head Screw 50 PCS is available now for immediate purchase. Ideal for construction and building frame fixing applications.
