Plug In Relay 7A 4CO | 12V DC Coil | Silver Contacts | Low Energy by NHP
Plug in relay with 7A current and 12V DC coil—ideal for industrial automation and control panels. Built for reliable switching, with silver contacts and low energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

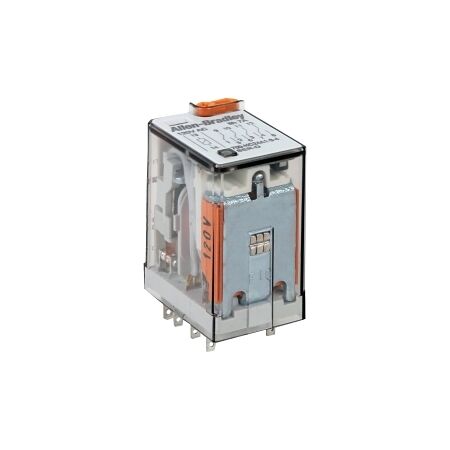

Product Name/Title: Allen-Bradley 700-HC Plug In Relay 7A 4CO 12V DC Coil Silver Contacts Low Energy Rating 10V 10mA
Brand: NHP
SKU: 700HC24Z12
Alternatively Known As: 700-HC Relay, Plug In Relay, General Purpose Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 277 V
- Rated Switching Power at AC-1: 1750 VA
- Rated Switching Power at AC-15 (230 V): 350 VA
- Breaking Capacity at DC-1 (30 V): 7 A
- Control Supply Voltage (DC): 12 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 50,000,000 cycles
- Material Contact: Silver nickel
- Degree of Protection: IP20
- Operating Temperature: -30 to 55 °C
- Dimensions (H x L x W): 28mm x 37mm x 21mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 4 changeover contacts.
- Plug-in connection for easy installation.
- Rated for 7A with a 12V DC coil.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Low energy rating reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HC Plug In Relay is available now for immediate purchase, suitable for various industrial and commercial applications.
