PM3C15-00030000 | Reflectors and optics

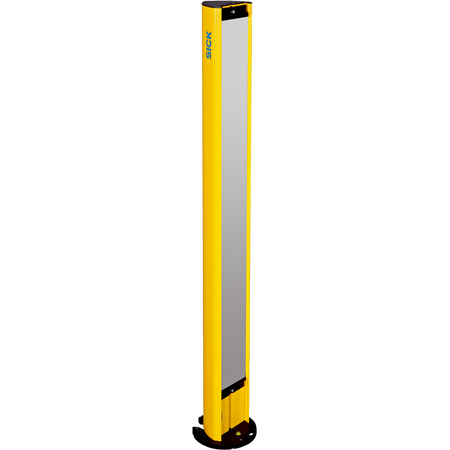

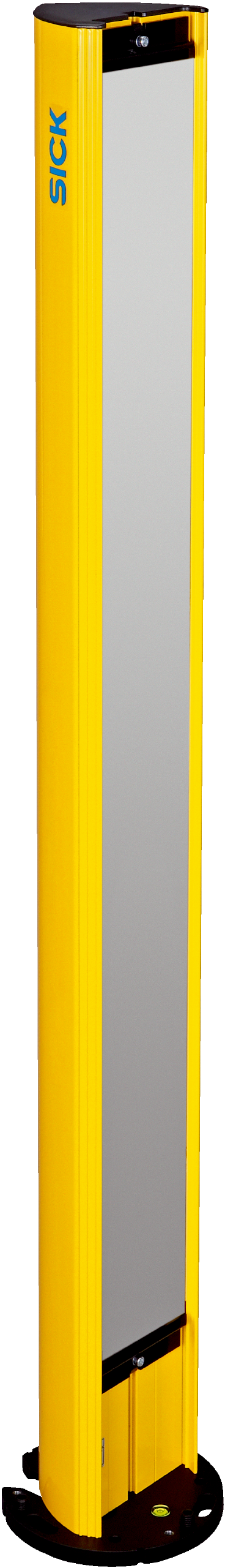

The SICK PM3C15-00030000 mirror column features a fixed mirror for horizontal beam deflection, enabling multi-sided access protection. It is designed for use with safety light curtains and beam sensors, anchored mechanically to the floor for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PM3C15-00030000 | Reflectors and optics
Brand: SICK
SKU: 1077525
Alternatively Known As: Safety Light Curtain Mirror Column, Beam Deflection Mirror Column, Access Protection Mirror Column
Technical Specifications
- Column height: 1569 mm
- Mirror height: 1382 mm
- Mirror width: 125 mm
- Cross-section of column profile: 148 mm x 118 mm
- Diameter of base plate: 180 mm
- Weight: 12.04 kg
- Type of diversion: Horizontal
- Mounting system: Mechanical anchoring to the floor
- Items supplied: Mirror column with pre-assembled base plate
- Dimensions (H x L x W): 1569mm x 118mm x 148mm
- Weight: 12.04 kg
Key Features
- PM3C mirror column with fixed mirror for horizontal beam deflection
- Mechanical anchoring to the floor for stable installation
- Pre-assembled base plate included for easy mounting
- Compatible with various safety light curtains and beam sensors
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mechanical anchoring and alignment with safety devices.
Applications
- Multi-sided access protection in industrial safety systems
- Use with safety light curtains and safety light-beam sensors
- Suitable for deTec, C2000, C4000, M4000, deTem, M2000 safety devices
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances safety systems to reduce workplace accidents and associated environmental impacts
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PM3C15-00030000 mirror column is available for immediate purchase, ideal for enhancing industrial safety systems with multi-sided access protection.
