PM3C19-00030000 | Reflectors and optics

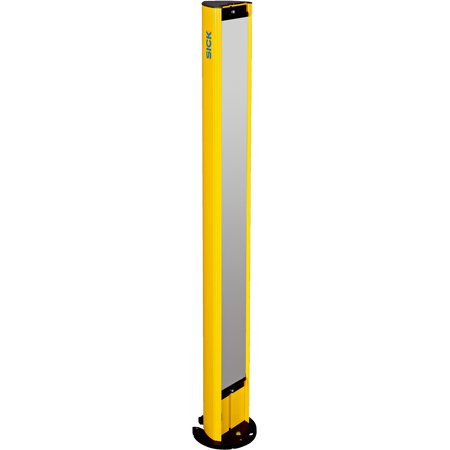

The SICK PM3C19-00030000 mirror column with fixed mirror provides reliable horizontal beam deflection for multi-sided access protection, compatible with various safety light curtains and sensors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PM3C19-00030000 | Reflectors and optics
Brand: SICK
SKU: 1043455
Alternatively Known As: Safety Light Curtain Mirror Column, Beam Deflection Mirror Column, Access Protection Mirror Column
Technical Specifications
- Column height: 2016.5 mm
- Mirror height: 1682 mm
- Mirror width: 125 mm
- Cross-section of column profile: 148 mm x 118 mm
- Diameter of base plate: 180 mm
- Weight: 14.41 kg
- Type of diversion: Horizontal
- Mounting system: Mechanical anchoring to the floor
- Items supplied: Mirror column with pre-assembled base plate
- Dimensions (H x L x W): 2016mm x 118mm x 148mm
- Weight: 14.41 kg
Key Features
- PM3C mirror column with fixed mirror for horizontal beam deflection
- Mechanical anchoring to the floor for stable installation
- Pre-assembled base plate included for easy mounting
- Suitable for deTec, C2000, C4000, M4000 safety light curtains and deTem, M2000, M4000 safety light-beam sensors
- Protective field height up to 1,650 mm
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper anchoring and alignment for safety compliance.
Applications
- Multi-sided access protection in industrial safety systems
- Use with safety light curtains and safety light-beam sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances safety systems to reduce workplace accidents and associated environmental impacts
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PM3C19-00030000 mirror column is available for immediate purchase, ideal for industrial safety applications requiring multi-sided access protection.
