Portable Earthing Cable Set | 70mm² A/B/C Phase Tail | 25mm² Earth Tail | 19.5kA Rating by Cabac

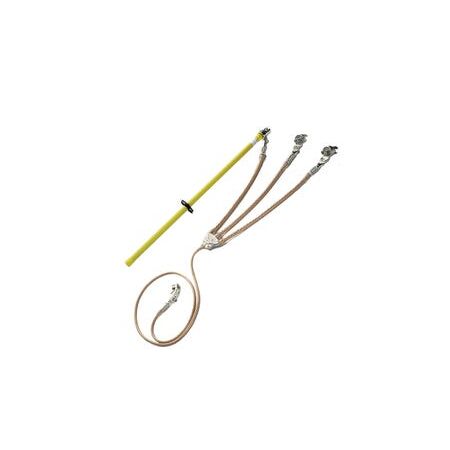

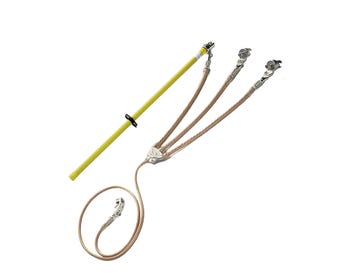

The Cabac SB Earth Set 70/35 mm2 is a high-quality portable earthing device set designed for electrical switchboard safety, featuring copper trifurcating cables and universal clamps rated to 19.5kA.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SB Earth Set 70/35 mm2
Brand: Cabac
SKU: D-770604-SET
Alternatively Known As: Portable Earthing Cable Set, Switchboard Earthing Device, Temporary Earthing Set, Electrical Earthing Kit
Technical Specifications
- A/B/C Phase Tail: 70mm² x 600mm
- Earth Tail: 25mm² x 1800mm
- Overhead Earthing Clamps on A/B/C cables
- Universal Earthing Clamp on Earth Tail
- Rated to 19.5kA for 0.5 seconds
- Dimensions (H x L x W): 35mm x 1800mm x 70mm
- Weight: 3.5 kg
Key Features
- German engineered ultra high quality copper trifurcating earthing cable set
- A/B/C Phase Tail - 70mm² x 600mm
- Earth Tail - 25mm² x 1800mm
- Overhead earthing clamps on A/B/C cables
- Universal earthing clamp on earth tail
- Rated to 19.5kA for 0.5 seconds
Professional Installation Requirements
- Installation and use should be performed by qualified electrical professionals to ensure safety and compliance.
Applications
- Electrical switchboard earthing and bonding
- Temporary portable earthing for electrical safety
- Industrial and construction site electrical safety
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and fires
- Durable copper materials ensure long service life reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac SB Earth Set 70/35 mm2 is available for immediate purchase, ideal for electrical safety in industrial and construction applications.
