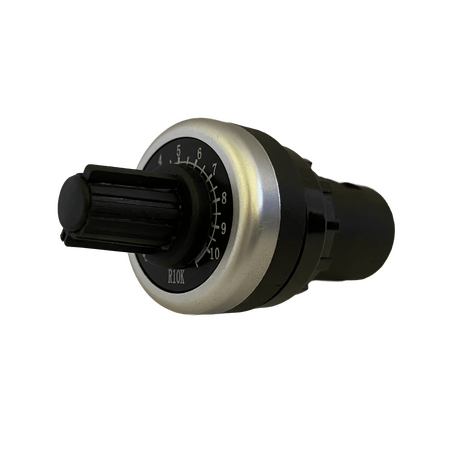

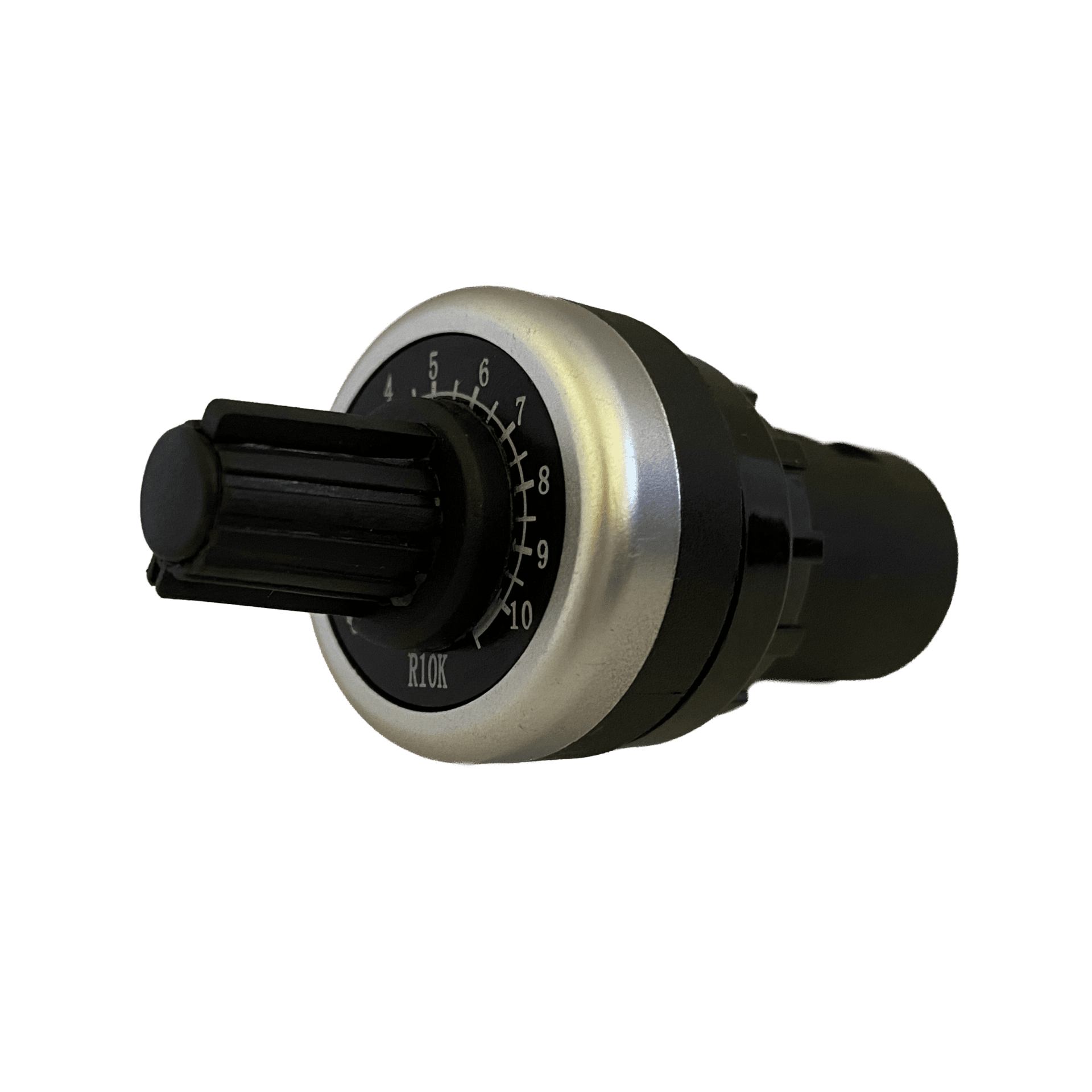

Potentiometer 10kOhm 22mm Panel Mount Eltech
Eltech potentiometer features 10kOhm resistance, 22mm panel-mount format and rotary adjustment. Ideal for control panel settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M22‑series potentiometer, RMQ‑Titan potentiometer
Technical Specifications
- Resistance: 10 kΩ linear (±10 %)
- Rated power: 0.5 W
- Mounting hole diameter: 22.5 mm
- Degree of protection: IP66
- Mechanical lifespan: 25 000 operations
- Ambient temperature range: –25 °C to +70 °C
- Terminal capacity: 0.5–1.5 mm² solid/stranded
- Tightening torque: 0.5 Nm
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 4000 V AC
- Dimensions (H x L x W): 29mm x 70mm x 29mm
- Weight: 0.1 kg
Key Features
- High ingress protection (IP66) with titanium bezel
- Compact 22.5 mm panel‑mount size
- Long mechanical lifespan of 25 000 operations
- Screw‑terminal connection for reliable installation
- Certified to IEC/EN 60947‑5‑1 standards
Applications
- Control panels requiring precise adjustment
- Industrial operator interfaces
- Machinery control knobs
- Environmental‑sealed potentiometer applications
Standards & Compliance
- Complies with IEC/EN 60947‑5‑1 (equivalent to AS 60947‑5‑1)
Environmental Benefits
- IP66 rating ensures dust‑tight, high‑pressure wash‑down capable enclosure, extending product life and reducing replacement waste
Warranty Information
Eaton provides one (1) year from installation or eighteen (18) months from shipment, whichever occurs first, under its standard selling policy.
Available Now
Available through authorised Australian distributors.
