Trade Discount 25%

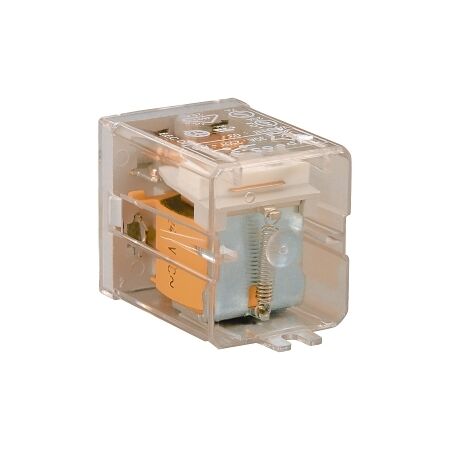

Power Relay Flange Mount 20A | 110V DC Coil | 1NO 1NC Contacts by NHP
Power relay with 20A nominal current and 110V DC coil—ideal for industrial automation and control panels. Built for reliable switching, with flange mount design and 1NO 1NC contacts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 65 Series Power Relay Flange Mount 20A 110V DC Coil 1NO 1NC Contacts
Brand: NHP
SKU: 6531110VDC
Alternatively Known As: Flange Mount Power Relay, 20A Relay, DC Coil Relay
Technical Specifications
- Nominal Current: 20 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Number of Contacts: 1NO, 1NC
- Rated Switching Power at AC-1: 5000 VA
- Rated Switching Power at AC-15 (230V): 1000 VA
- Breaking Capacity at DC-1 (30V): 20 A
- Breaking Capacity at DC-1 (110V): 0.8 A
- Control Supply Voltage: 110 V DC
- Electrical Life: 80000 cycles
- Mechanical Life: 30000000 cycles
- Operating Temperature: -40 to 75 °C
- Dimensions (H x L x W): 36.5mm x 57.2mm x 32.2mm
- Weight: 0.2 kg
Key Features
- 20A nominal current with 1NO and 1NC contacts.
- Rated for 110V DC coil operation.
- Suitable for flange mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with relevant Australian standards for electrical devices.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 65 Series Power Relay Flange Mount 20A 110V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
