Home/Electrical/Industrial/Isolators/PowerFlex 523 VSD 480V | 2.3A 0.75kW | IP20 Frame A by NHP

Trade Discount 25%

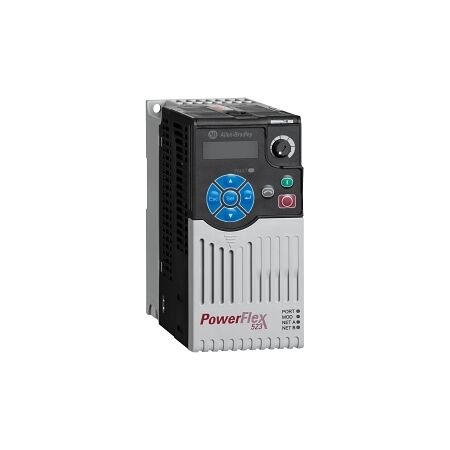

Allen-Bradley PowerFlex 523 VSD 480V IP20 2.3A 0.75kW ND and HD Frame A

PowerFlex 523 VSD 480V | 2.3A 0.75kW | IP20 Frame A by NHP

BRAND: NHP

SKU: 25AD2P3N114

$1,237.60 List price: $1,643.30

+ −

30 Days Return Delivery Options

Variable speed drive with 480V input and 2.3A output—ideal for industrial motor control. Built for efficiency with dynamic braking and PID control, perfect for manufacturing and HVAC systems.

Description
Attachments

Product Name/Title: Allen-Bradley PowerFlex 523 VSD 480V IP20 2.3A 0.75kW ND and HD Frame A

Brand: NHP

SKU: 25AD2P3N114

Alternatively Known As: PowerFlex 523 Variable Speed Drive, PF523 VSD, Allen-Bradley VSD

Technical Specifications

Input Phases: 3
Nominal Input Voltage: 415 V
Nominal Output Power: 0.75 kW
Nominal Output Current: 2.3 A
Dynamic Braking Transistor: Yes
Control Characteristic: PID
EMC Version: Yes
Frame Size: A
Degree of Protection: IP20
Operating Temperature: -20-50 °C
Dimensions (H x L x W): 200mm x 150mm x 150mm
Weight: 5 kg

Key Features

Variable speed control for enhanced efficiency.
Dynamic braking transistor for improved performance.
PID control characteristic for precise operation.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial: Motor control in manufacturing and processing plants
Commercial: HVAC systems and pumps

Standards & Compliance

Complies with relevant Australian standards for electrical equipment.

Environmental Benefits

Energy-efficient operation reduces overall power consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 523 VSD is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise motor control.

25AD2P3N114-AU-PF523-Variable-Speed-Drive-Datasheet.pdf (25AD2P3N114-AU-PF523-Variable-Speed-Drive-Datasheet.pdf, 278 Kb) [Download]
