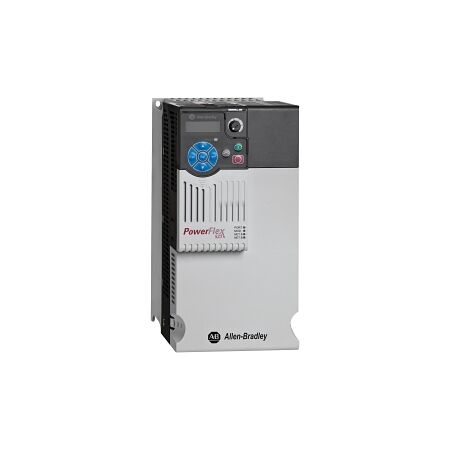

Allen-Bradley PowerFlex 523 VSD 480V IP20 24A 11kW ND HD Frame D

PowerFlex 523 VSD 480V | 24A 11kW | IP20 Frame D by NHP

BRAND: NHP

SKU: 25AD024N114

$3,616.00 List price: $4,801.60

+ −

30 Days Return Delivery Options

Variable speed drive with 480V input and 24A output—ideal for industrial and commercial motor control. Built for energy efficiency, with dynamic braking and PID control for precise operation.

Description
Attachments

Product Name/Title: Allen-Bradley PowerFlex 523 VSD 480V IP20 24A 11kW ND HD Frame D

Brand: NHP

SKU: 25AD024N114

Alternatively Known As: PowerFlex 523 VSD, Variable Speed Drive, Frequency Converter

Technical Specifications

Number of phases input: 3
Nominal input voltage: 415 V
Nominal output power AC: 11 kW
Nominal output current I2N: 24 A
KW rating normal duty: 11 kW
KW rating heavy duty: 11 kW
Dynamic braking transistor: Yes
Control characteristic: PID
EMC version: Yes
Contains keypad: Yes
Frame size: D
Degree of protection IP: IP20
Operating temperature: -20-50 °C
Dimensions (H x L x W): 300mm x 150mm x 200mm
Weight: 5.0 kg

Key Features

Variable speed control for improved energy efficiency.
Dynamic braking transistor for enhanced performance.
PID control characteristic for precise operation.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial: Manufacturing, processing, and automation systems
Commercial: HVAC systems, pumps, and fans

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Energy-efficient operation reduces overall power consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 523 VSD is available now for immediate purchase. Ideal for industrial and commercial applications requiring efficient motor control.

25AD024N114-AU-PF523-Variable-Speed-Drive-Datasheet.pdf (25AD024N114-AU-PF523-Variable-Speed-Drive-Datasheet.pdf, 247 Kb) [Download]
