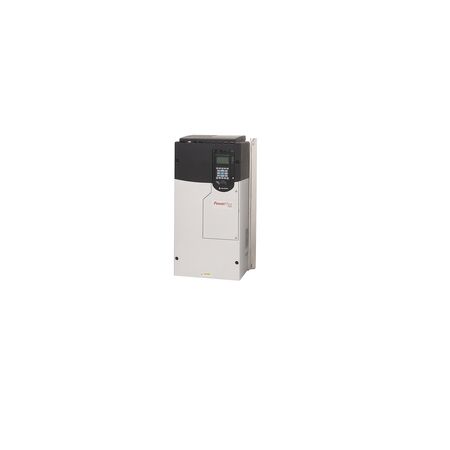

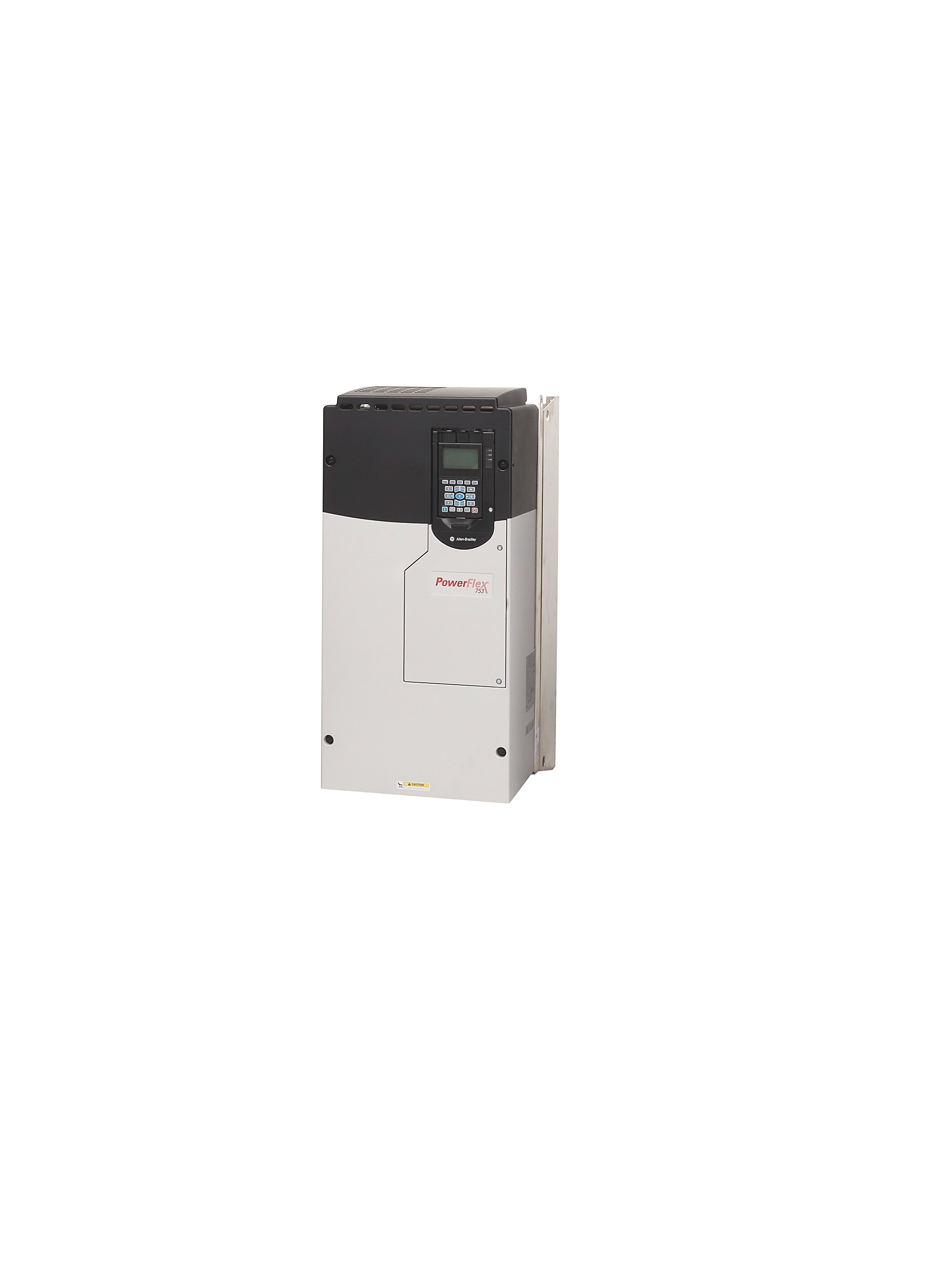

PowerFlex 753 AC Drive | 75kW Power | 140 Amps Current | Open Type Enclosure by Allen-Bradley
PowerFlex 753 AC Drive with 75kW power and 140 amps current—ideal for industrial motor control and automation. Built for manufacturing processes and HVAC systems, with forced air cooling for reliable operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PowerFlex 753 AC Drive | 75kW Power | 140 Amps Current | Open Type Enclosure by Allen-Bradley
Brand: Allen-Bradley
SKU: 20F1ANC140JA0NNNNN
Alternatively Known As: PowerFlex 753 Drive, Allen Bradley 75kW AC Drive, 20F1ANC140JA0NNNNN Drive
Technical Specifications
- Power: 75kW ND, 55kW HD
- Current: 140 Amps
- Voltage: 400 VAC, 3 Phase
- Frame Size: 6
- Cooling: Forced Air
- Input: AC with Precharge
- Enclosure: Open Type
- Filtered Input with CM jumper installed
- Output: DB Transistor
- No DC Terminals
- No Human Interface Module (HIM)
- Dimensions (H x L x W): 600mm x 400mm x 300mm
- Weight: 50 kg
Key Features
- Embedded I/O for flexible control
- Standard protection features
- Forced air cooling for reliable operation
- AC input with precharge for safety
- No DC terminals for simplified wiring
- Open type enclosure
- Filtered input for reduced electrical noise
- CM jumper installed (preferred)
- DB transistor output
- No Human Interface Module (HIM) included
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with industrial drives to ensure compliance with safety and operational standards.
Applications
- Industrial motor control and automation
- Manufacturing process drives
- HVAC systems
- Pumps and fans control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Improved process efficiency lowers environmental impact
Warranty Information
1 year warranty against manufacturing defects.
Available Now
This product available now for immediate purchase.
